ADUM7223ACCZ
  • Share:

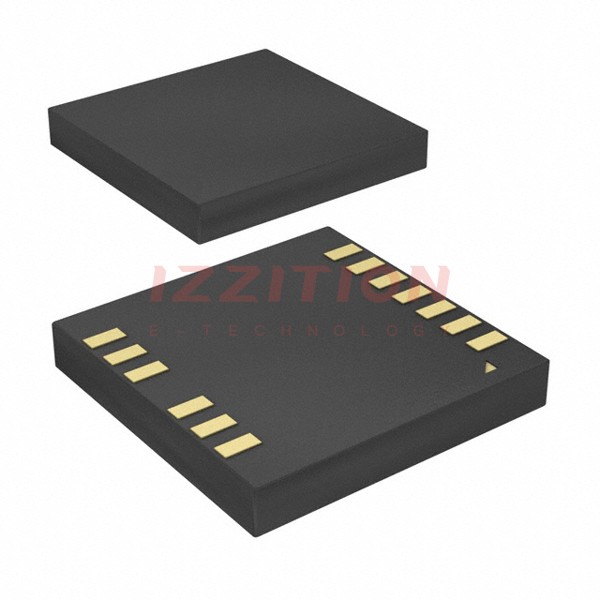

Analog Devices Inc. ADUM7223ACCZ

Manufacturer No:
ADUM7223ACCZ
Manufacturer:
Analog Devices Inc.
Package:
Tray
Datasheet:
ADUM7223ACCZ Datasheet
ECAD Model:
-
Description:
DGTL ISO 2.5KV GATE DRIVER 13LGA
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Technology:Magnetic Coupling
Number of Channels:2
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):50kV/µs
Propagation Delay tpLH / tpHL (Max):68ns, 68ns
Pulse Width Distortion (Max):-
Rise / Fall Time (Typ):12ns, 12ns
Current - Output High, Low:-
Current - Peak Output:4A
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:4.5V ~ 18V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:13-VFLGA
Supplier Device Package:13-LGA (5x5)
Approval Agency:-
0 Remaining View Similar

In Stock

$5.48
159

Please send RFQ , we will respond immediately.
