ADUM6424ABRNZ3
  • Share:

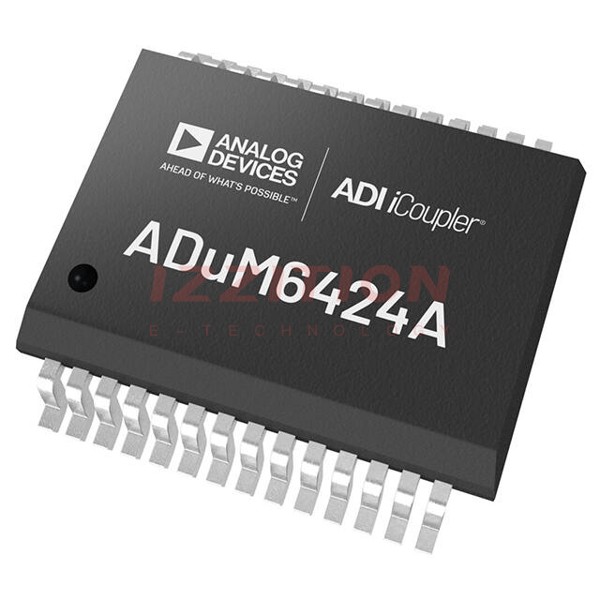

Analog Devices Inc. ADUM6424ABRNZ3

Manufacturer No:
ADUM6424ABRNZ3
Manufacturer:
Analog Devices Inc.
Package:
Tube
Datasheet:
ADUM6424ABRNZ3 Datasheet
ECAD Model:
-
Description:
DGTL ISO 5KV 4CH GEN PRP 28SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Technology:Magnetic Coupling
Type:General Purpose
Isolated Power:Yes
Number of Channels:4
Inputs - Side 1/Side 2:0/4
Channel Type:Unidirectional
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):75kV/µs
Data Rate:100Mbps
Propagation Delay tpLH / tpHL (Max):17ns, 17ns
Pulse Width Distortion (Max):5ns
Rise / Fall Time (Typ):2.5ns, 2.5ns
Voltage - Supply:1.7V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:28-BSSOP (0.295", 7.50mm Width)
Supplier Device Package:28-SOIC-W-FP
0 Remaining View Similar

In Stock

$13.06
60

Please send RFQ , we will respond immediately.
