Please send RFQ , we will respond immediately.

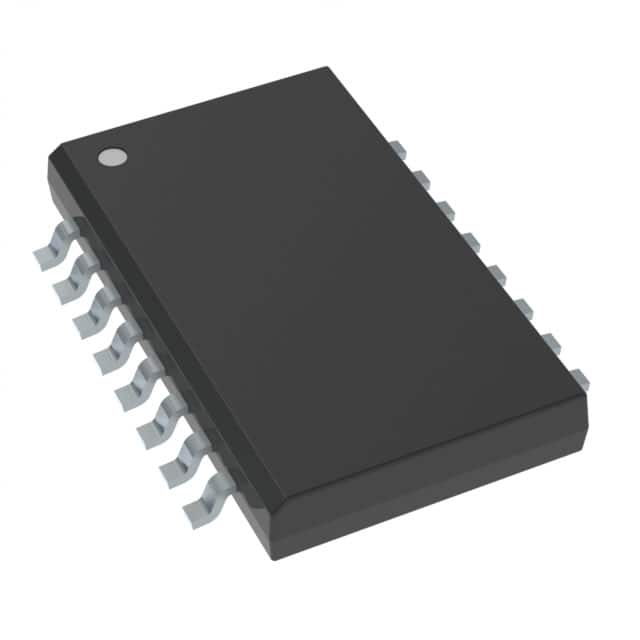

| Part Number | ADUM4221BRIZ | ADUM4221CRIZ | ADUM4221ARIZ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Synchronous | Synchronous | Synchronous |
| Number of Drivers | 2 | 2 | 2 |
| Gate Type | IGBT | IGBT | IGBT |
| Voltage - Supply | 2.5V ~ 6.5V | 2.5V ~ 6.5V | 2.5V ~ 6.5V |
| Logic Voltage - VIL, VIH | 1.5V, 3.5V | 1.5V, 3.5V | 1.5V, 3.5V |
| Current - Peak Output (Source, Sink) | 4A, 6A | 4A, 6A | 4A, 6A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - |
| Rise / Fall Time (Typ) | 25ns, 30ns | 25ns, 30ns | 25ns, 30ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC | 16-SOIC | 16-SOIC |
