| Part Number | ADUC848BS32-5 | ADUC848BSZ32-5 | ADUC848BS62-5 | ADUC847BS32-5 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Core Processor | 8052 | 8052 | 8052 | 8052 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 12.58MHz | 12.58MHz | 12.58MHz | 12.58MHz |
| Connectivity | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART |
| Peripherals | POR, PSM, PWM, Temp Sensor, WDT | POR, PSM, PWM, Temp Sensor, WDT | POR, PSM, PWM, Temp Sensor, WDT | POR, PSM, PWM, Temp Sensor, WDT |
| Number of I/O | 34 | 34 | 34 | 34 |
| Program Memory Size | 32KB (32K x 8) | 32KB (32K x 8) | 62KB (62K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| RAM Size | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Data Converters | A/D 10x16b; D/A 1x12b, 2x16b | A/D 10x16b; D/A 1x12b, 2x16b | A/D 10x16b; D/A 1x12b, 2x16b | A/D 10x24b; D/A 1x12b, 2x16b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

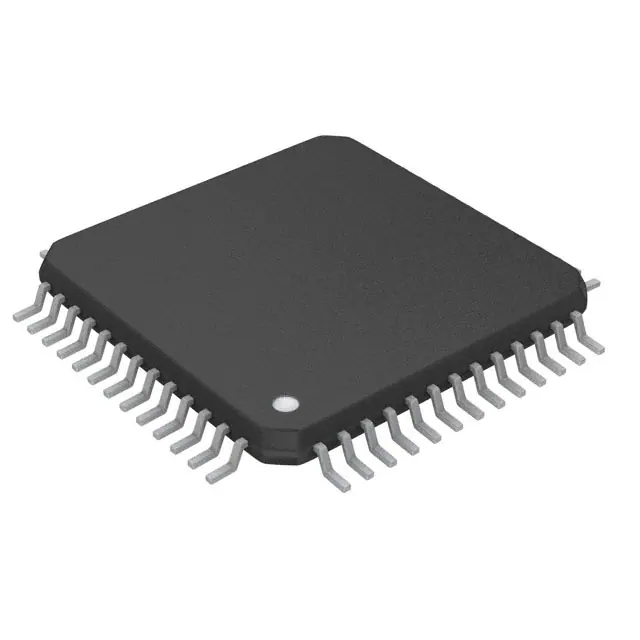

| Package / Case | 52-QFP | 52-QFP | 52-QFP | 52-QFP |
| Supplier Device Package | 52-MQFP (10x10) | 52-MQFP (10x10) | 52-MQFP (10x10) | 52-MQFP (10x10) |
