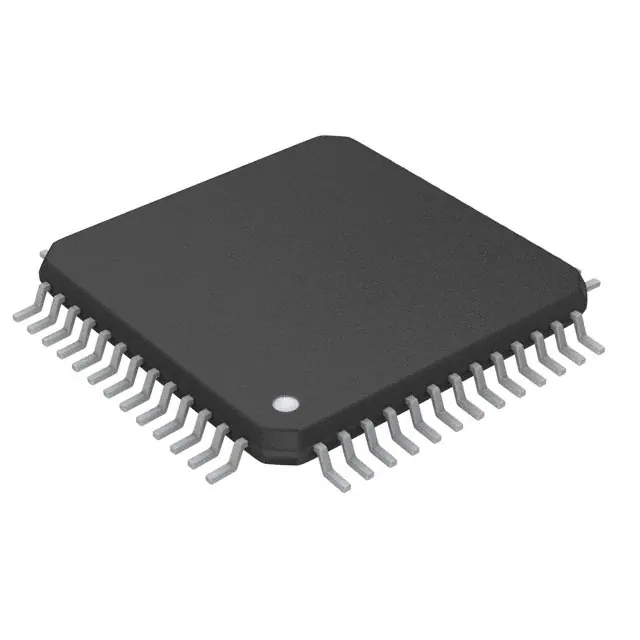

| Part Number | ADUC843BSZ62-5 | ADUC847BSZ62-5 | ADUC845BSZ62-5 | ADUC848BSZ62-5 | ADUC841BSZ62-5 | ADUC842BSZ62-5 | ADUC843BSZ62-3 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | 8052 | 8052 | 8052 | 8052 | 8052 | 8052 | 8052 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 16.78MHz | 12.58MHz | 12.58MHz | 12.58MHz | 20MHz | 16.78MHz | 8.38MHz |
| Connectivity | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART | I²C, SPI, UART/USART |
| Peripherals | DMA, PSM, PWM, Temp Sensor, WDT | POR, PSM, PWM, Temp Sensor, WDT | POR, PSM, PWM, Temp Sensor, WDT | POR, PSM, PWM, Temp Sensor, WDT | DMA, PSM, PWM, Temp Sensor, WDT | DMA, PSM, PWM, Temp Sensor, WDT | DMA, PSM, PWM, Temp Sensor, WDT |
| Number of I/O | 32 | 34 | 34 | 34 | 32 | 32 | 32 |
| Program Memory Size | 62KB (62K x 8) | 62KB (62K x 8) | 62KB (62K x 8) | 62KB (62K x 8) | 62KB (62K x 8) | 62KB (62K x 8) | 62KB (62K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | 4K x 8 | 4K x 8 | 4K x 8 | - | - | - |
| RAM Size | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 2.7V ~ 3.6V |
| Data Converters | A/D 8x12b | A/D 10x24b; D/A 1x12b, 2x16b | A/D 10x24b; D/A 1x12b, 2x16b | A/D 10x16b; D/A 1x12b, 2x16b | A/D 8x12b; D/A 2x12b | A/D 8x12b; D/A 2x12b | A/D 8x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 52-QFP | 52-QFP | 52-QFP | 52-QFP | 52-QFP | 52-QFP | 52-QFP |
| Supplier Device Package | 80-PQFP (14x14) | 52-MQFP (10x10) | 52-MQFP (10x10) | 52-MQFP (10x10) | 80-PQFP (14x14) | 80-PQFP (14x14) | 80-PQFP (14x14) |
