Please send RFQ , we will respond immediately.
| Part Number | ADUC832BCP | ADUC832BCPZ | ADUC834BCP | ADUC836BCP | ADUC812BCP | ADUC831BCP |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | 8052 | 8052 | 8052 | 8052 | 8052 | 8052 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 16MHz | 16MHz | 12.58MHz | 12.58MHz | 16MHz | 16MHz |
| Connectivity | EBI/EMI, I²C, SPI, UART/USART | EBI/EMI, I²C, SPI, UART/USART | EBI/EMI, I²C, SPI, UART/USART | EBI/EMI, I²C, SPI, UART/USART | I²C, SPI, UART/USART | EBI/EMI, I²C, SPI, UART/USART |
| Peripherals | PSM, Temp Sensor, WDT | PSM, Temp Sensor, WDT | POR, PSM, PWM, Temp Sensor, WDT | POR, PSM, PWM, Temp Sensor, WDT | PSM, Temp Sensor, WDT | PSM, Temp Sensor, WDT |
| Number of I/O | 34 | 34 | 34 | 34 | 34 | 34 |
| Program Memory Size | 62KB (62K x 8) | 62KB (62K x 8) | 62KB (62K x 8) | 62KB (62K x 8) | 8KB (8K x 8) | 62KB (62K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 640 x 8 | 4K x 8 |
| RAM Size | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 256 x 8 | 2.25K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 8x12b; D/A 2x12b | A/D 8x12b; D/A 2x12b | A/D 3x16b, 4x24b; D/A 1x12b | A/D 7x16b; D/A 1x12b | A/D 8x12b; D/A 2x12b | A/D 8x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

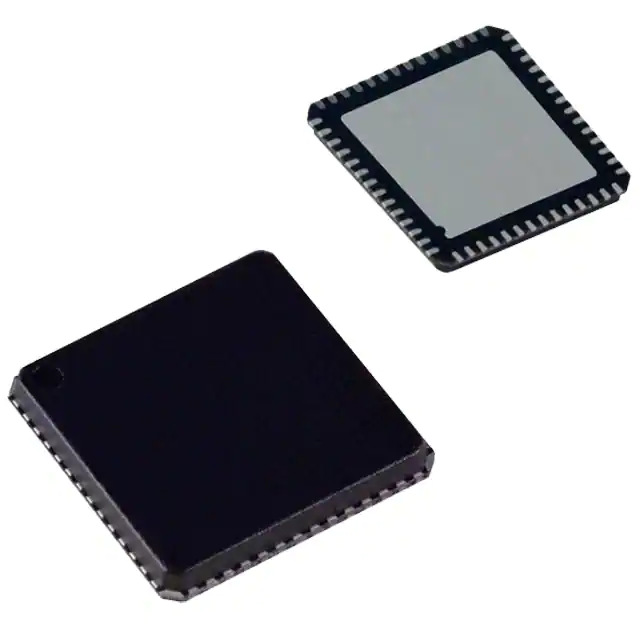

| Package / Case | 56-VFQFN Exposed Pad, CSP | 56-VFQFN Exposed Pad, CSP | 56-VFQFN Exposed Pad, CSP | 56-VFQFN Exposed Pad, CSP | 56-VFQFN Exposed Pad, CSP | 56-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 56-LFCSP-VQ (8x8) | 56-LFCSP-VQ (8x8) | 56-LFCSP-VQ (8x8) | 56-LFCSP-VQ (8x8) | 56-LFCSP-VQ (8x8) | 56-LFCSP-VQ (8x8) |
