Please send RFQ , we will respond immediately.
| Part Number | ADRF5046BCCZN-R7 | ADRF5047BCCZN-R7 | ADRF5026BCCZN-R7 | ADRF5042BCCZN-R7 | ADRF5043BCCZN-R7 | ADRF5044BCCZN-R7 | ADRF5045BCCZN-R7 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| RF Type | Radar, VSAT | VSAT | VSAT | Cellular, VSAT | Cellular, VSAT | General Purpose | General Purpose |
| Topology | Reflective | Reflective | Absorptive | Absorptive | Absorptive | - | Absorptive |
| Circuit | SP4T | SP4T | SPDT | SP4T | SP4T | SP4T | SP4T |
| Frequency Range | 100MHz ~ 44GHz | 9kHz ~ 44GHz | 100MHz ~ 44GHz | 100MHz ~ 44GHz | 9kHz ~ 44GHz | 100MHz ~ 30GHz | 9kHz ~ 30GHz |
| Isolation | 31dB | 31dB | 45dB | 35dB | 36dB | 43dB | 45dB |
| Insertion Loss | 3dB | 2.7dB | 3.8dB | 3.2dB | 2.5dB | 2.6dB | 2.4dB |
| Test Frequency | 40GHz ~ 44GHz | 44GHz | 44GHz | 44GHz | 44GHz | 30GHz | 30GHz |
| P1dB | - | - | 27dBm | 27dBm | 27dBm | 28dbm | 28dbm |
| IIP3 | 50dBm | 50dBm | 53dBm | 47dBm | 48dBm | 50dBm | 50dBm |
| Features | - | - | - | - | - | - | - |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Voltage - Supply | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.3V | 3.15V ~ 3.45V |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C (TC) | -40°C ~ 105°C | -40°C ~ 105°C (TC) | -40°C ~ 105°C (TC) | -40°C ~ 85°C (TC) | -40°C ~ 85°C (TC) |

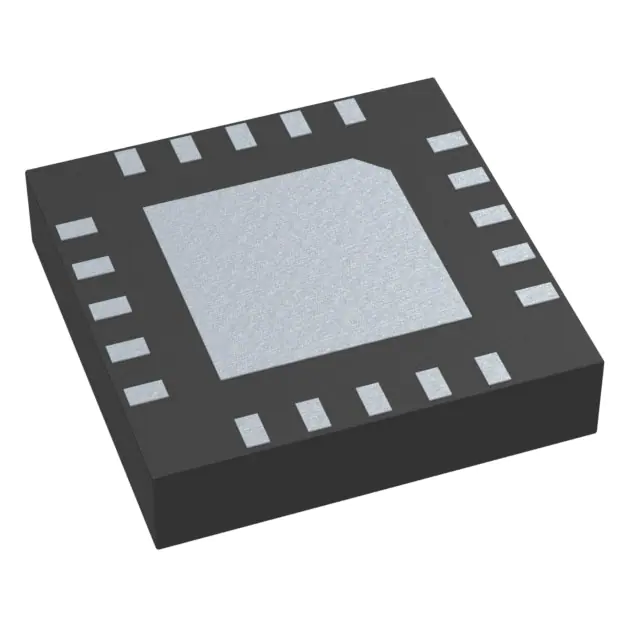

| Package / Case | 20-VFLGA Exposed Pad | 20-VFLGA Exposed Pad | 20-WFLGA Exposed Pad | 24-VFLGA Exposed Pad | 24-VFLGA Exposed Pad | 24-VFLGA Exposed Pad | 24-VFLGA Exposed Pad |
| Supplier Device Package | 20-LGA (3x3) | 20-LGA (3x3) | 20-LGA (3x3) | 24-LGA (3x3) | 24-LGA (3x3) | 24-LGA (4x4) | 24-LGA (4x4) |
