| Part Number | ADRF5044BCCZN | ADRF5046BCCZN | ADRF5047BCCZN | ADRF5045BCCZN | ADRF5024BCCZN | ADRF5042BCCZN | ADRF5043BCCZN |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| RF Type | General Purpose | Radar, VSAT | VSAT | General Purpose | General Purpose | Cellular, VSAT | Cellular, VSAT |
| Topology | - | Reflective | Reflective | Absorptive | Reflective | Absorptive | Absorptive |
| Circuit | SP4T | SP4T | SP4T | SP4T | SPDT | SP4T | SP4T |
| Frequency Range | 100MHz ~ 30GHz | 100MHz ~ 44GHz | 9kHz ~ 44GHz | 9kHz ~ 30GHz | 100MHz ~ 44GHz | 100MHz ~ 44GHz | 9kHz ~ 44GHz |
| Isolation | 43dB | 31dB | 31dB | 45dB | 35dB | 35dB | 36dB |
| Insertion Loss | 2.6dB | 3dB | 2.7dB | 2.4dB | 1.7dB | 3.2dB | 2.5dB |
| Test Frequency | 30GHz | 40GHz ~ 44GHz | 44GHz | 30GHz | 44GHz | 44GHz | 44GHz |
| P1dB | 28dbm | - | - | 28dbm | 27.5dBm | 27dBm | 27dBm |
| IIP3 | 50dBm | 50dBm | 50dBm | 50dBm | 50dBm | 47dBm | 48dBm |
| Features | - | - | - | - | - | - | - |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Voltage - Supply | 3.3V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V |
| Operating Temperature | -40°C ~ 85°C (TC) | -40°C ~ 105°C | -40°C ~ 105°C (TC) | -40°C ~ 85°C (TC) | -40°C ~ 105°C | -40°C ~ 105°C (TC) | -40°C ~ 105°C (TC) |

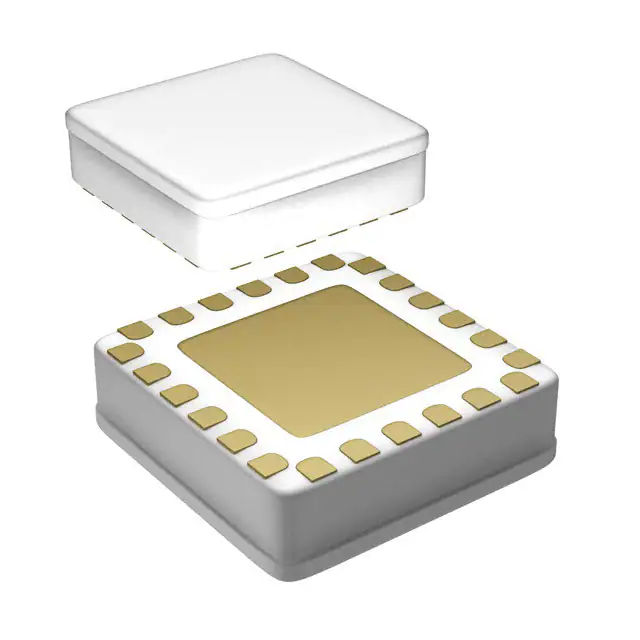

| Package / Case | 24-VFLGA Exposed Pad | 20-VFLGA Exposed Pad | 20-VFLGA Exposed Pad | 24-VFLGA Exposed Pad | 12-VFLGA | 24-VFLGA Exposed Pad | 24-VFLGA Exposed Pad |
| Supplier Device Package | 24-LGA (4x4) | 20-LGA (3x3) | 20-LGA (3x3) | 24-LGA (4x4) | 12-LGA (2.25x2.25) | 24-LGA (3x3) | 24-LGA (3x3) |
