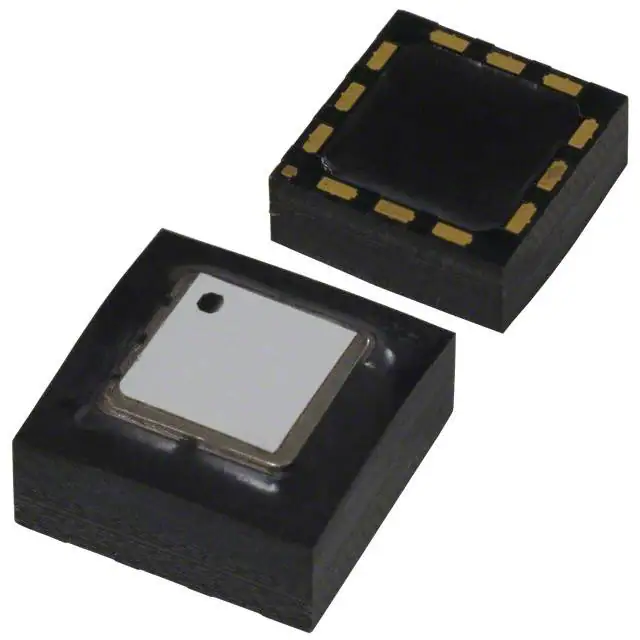

| Part Number | ADRF5024BCCZN | ADRF5027BCCZN | ADRF5025BCCZN | ADRF5044BCCZN | ADRF5026BCCZN | ADRF5020BCCZN | ADRF5021BCCZN |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| RF Type | General Purpose | VSAT | General Purpose | General Purpose | VSAT | VSAT | VSAT |
| Topology | Reflective | Absorptive | Reflective | - | Absorptive | Absorptive | Absorptive |
| Circuit | SPDT | SPDT | SPDT | SP4T | SPDT | SPDT | SPDT |
| Frequency Range | 100MHz ~ 44GHz | 9kHz ~ 44GHz | 9kHz ~ 44GHz | 100MHz ~ 30GHz | 100MHz ~ 44GHz | 100MHz ~ 30GHz | 9kHz ~ 30GHz |
| Isolation | 35dB | 43dB | 35dB | 43dB | 45dB | 65dB | 60dB |
| Insertion Loss | 1.7dB | 3.8dB | 1.6dB | 2.6dB | 3.8dB | 2dB | 2dB |
| Test Frequency | 44GHz | 44GHz | 44GHz | 30GHz | 44GHz | 20GHz | 30GHz |
| P1dB | 27.5dBm | 26dBm | 27.5dBm | 28dbm | 27dBm | 28dbm | 28dbm |
| IIP3 | 50dBm | 54dBm | 50dBm | 50dBm | 53dBm | 52dBm | 52dBm |
| Features | - | - | - | - | - | - | - |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Voltage - Supply | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.3V | 3.15V ~ 3.45V | 5.5V | 3.3V |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C (TC) | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 12-VFLGA | 20-WFLGA Exposed Pad | 12-VFLGA | 24-VFLGA Exposed Pad | 20-WFLGA Exposed Pad | 20-WFLGA Exposed Pad | 20-WFLGA Exposed Pad |
| Supplier Device Package | 12-LGA (2.25x2.25) | 20-LGA (3x3) | 12-LGA (2.25x2.25) | 24-LGA (4x4) | 20-LGA (3x3) | 20-LGA (3x3) | 20-LGA (3x3) |
