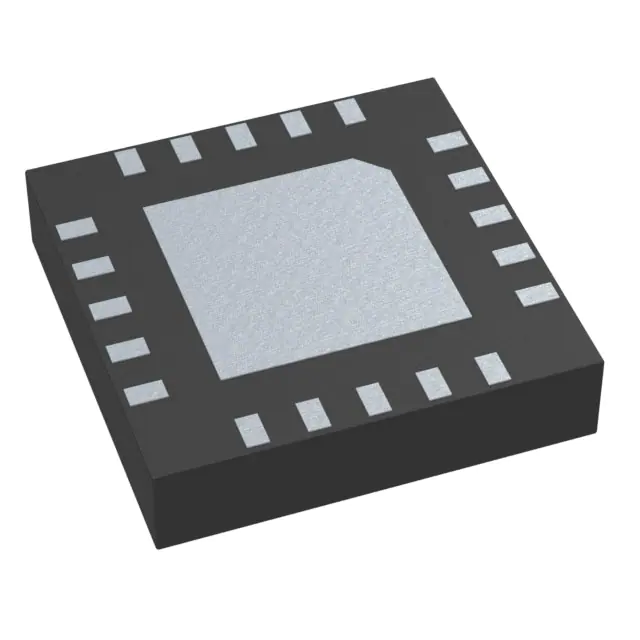

| Part Number | ADRF5020BCCZN | ADRF5027BCCZN | ADRF5024BCCZN | ADRF5025BCCZN | ADRF5021BCCZN | ADRF5026BCCZN |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| RF Type | VSAT | VSAT | General Purpose | General Purpose | VSAT | VSAT |
| Topology | Absorptive | Absorptive | Reflective | Reflective | Absorptive | Absorptive |
| Circuit | SPDT | SPDT | SPDT | SPDT | SPDT | SPDT |
| Frequency Range | 100MHz ~ 30GHz | 9kHz ~ 44GHz | 100MHz ~ 44GHz | 9kHz ~ 44GHz | 9kHz ~ 30GHz | 100MHz ~ 44GHz |
| Isolation | 65dB | 43dB | 35dB | 35dB | 60dB | 45dB |
| Insertion Loss | 2dB | 3.8dB | 1.7dB | 1.6dB | 2dB | 3.8dB |
| Test Frequency | 20GHz | 44GHz | 44GHz | 44GHz | 30GHz | 44GHz |
| P1dB | 28dbm | 26dBm | 27.5dBm | 27.5dBm | 28dbm | 27dBm |
| IIP3 | 52dBm | 54dBm | 50dBm | 50dBm | 52dBm | 53dBm |
| Features | - | - | - | - | - | - |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Voltage - Supply | 5.5V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.3V | 3.15V ~ 3.45V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Package / Case | 20-WFLGA Exposed Pad | 20-WFLGA Exposed Pad | 12-VFLGA | 12-VFLGA | 20-WFLGA Exposed Pad | 20-WFLGA Exposed Pad |
| Supplier Device Package | 20-LGA (3x3) | 20-LGA (3x3) | 12-LGA (2.25x2.25) | 12-LGA (2.25x2.25) | 20-LGA (3x3) | 20-LGA (3x3) |
