| Part Number | ADP7185ACPZN1.5-R7 | ADP7185ACPZN1.8-R7 | ADP7185ACPZN2.5-R7 | ADP7183ACPZN1.5-R7 | ADP7185ACPZN0.5-R7 | ADP7185ACPZN1.0-R7 | ADP7185ACPZN1.2-R7 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Output Configuration | Negative | Negative | Negative | Negative | Negative | Negative | Negative |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | -5.5V | -5.5V | -5.5V | -5.5V | -5.5V | -5.5V | -5.5V |
| Voltage - Output (Min/Fixed) | -1.5V | -1.8V | -2.5V | -1.5V | -0.5V | -1V | -1.2V |
| Voltage - Output (Max) | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.36V @ 500mA | 0.36V @ 500mA | 0.36V @ 500mA | 0.22V @ 300mA | 0.36V @ 500mA | 0.36V @ 500mA | 0.36V @ 500mA |
| Current - Output | 500mA | 500mA | 500mA | 300mA | 500mA | 500mA | 500mA |
| Current - Quiescent (Iq) | 900 µA | 900 µA | 900 µA | 900 µA | 900 µA | 900 µA | 900 µA |
| Current - Supply (Max) | 7 mA | 7 mA | 7 mA | 7 mA | 7 mA | 7 mA | 7 mA |
| PSRR | 80dB ~ 40dB (1kHz ~ 1MHz) | 80dB ~ 40dB (1kHz ~ 1MHz) | 80dB ~ 40dB (1kHz ~ 1MHz) | 85dB ~ 40dB (1kHz ~ 1MHz) | 80dB ~ 40dB (1kHz ~ 1MHz) | 80dB ~ 40dB (1kHz ~ 1MHz) | 80dB ~ 40dB (1kHz ~ 1MHz) |
| Control Features | Enable, Power On Reset | Enable, Power On Reset | Enable, Power On Reset | Enable | Enable, Power On Reset | Enable, Power On Reset | Enable, Power On Reset |
| Protection Features | Over Current | Over Current | Over Current | Current Limit, Thermal Overload | Over Current | Over Current | Over Current |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

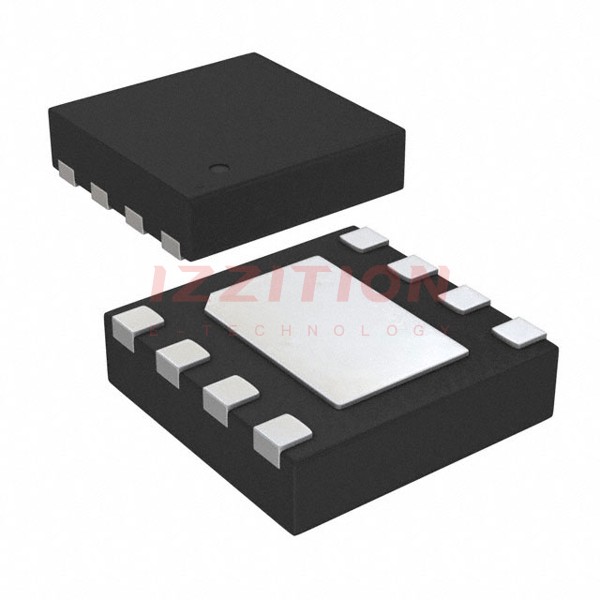

| Package / Case | 8-UFDFN Exposed Pad, CSP | 8-UFDFN Exposed Pad, CSP | 8-UFDFN Exposed Pad, CSP | 8-UFDFN Exposed Pad, CSP | 8-UFDFN Exposed Pad, CSP | 8-UFDFN Exposed Pad, CSP | 8-UFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP (2x2) | 8-LFCSP (2x2) | 8-LFCSP (2x2) | 8-LFCSP (2x2) | 8-LFCSP (2x2) | 8-LFCSP (2x2) | 8-LFCSP (2x2) |
