Please send RFQ , we will respond immediately.
| Part Number | ADP7159ARDZ-02-R7 | ADP7159ARDZ-04-R7 | ADP7159ARDZ-03-R7 | ADP7157ARDZ-02-R7 | ADP7159ARDZ-01-R7 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V | 1.2V | 1.2V | 1.2V | 1.2V |
| Voltage - Output (Max) | 2.3V | 3.3V | 2.9V | 2.3V | 1.8V |
| Voltage Dropout (Max) | 0.28V @ 2A | 0.28V @ 2A | 0.28V @ 2A | 0.17V @ 1.2A | 0.28V @ 2A |
| Current - Output | 2A | 2A | 2A | 1.2A | 2A |
| Current - Quiescent (Iq) | 8 mA | 8 mA | 8 mA | 8 mA | 8 mA |
| Current - Supply (Max) | 14 mA | 14 mA | 14 mA | 12 mA | 14 mA |
| PSRR | 61dB ~ 45dB (1kHz ~ 1MHz) | 68dB ~ 45dB (1kHz ~ 1MHz) | 65dB ~ 45dB (1kHz ~ 1MHz) | 72dB ~ 53dB (1kHz ~ 1MHz) | 55dB ~ 40dB (1kHz ~ 1MHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

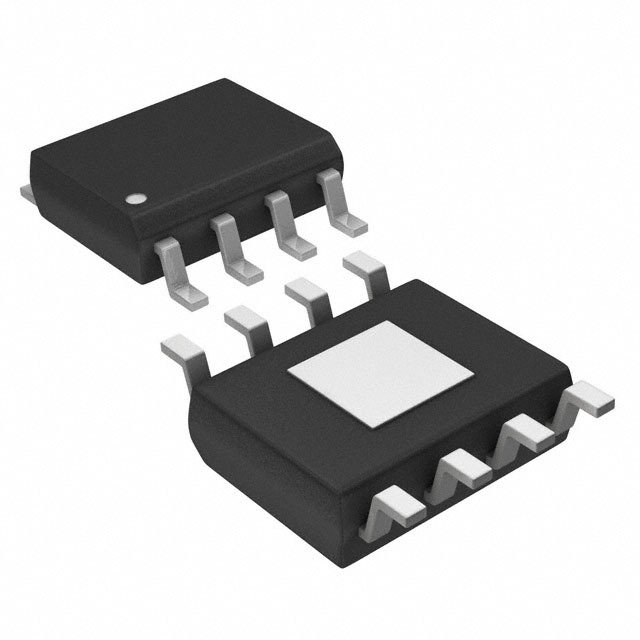

| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP | 8-SOIC-EP | 8-SOIC-EP | 8-SOIC-EP | 8-SOIC-EP |
