| Part Number | ADP7142ACPZN3.8-R7 | ADP7142ACPZN1.8-R7 | ADP7142ACPZN3.3-R7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 3.8V | 1.8V | 3.3V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.42V @ 200mA | - | 0.42V @ 200mA |
| Current - Output | 200mA | 200mA | 200mA |
| Current - Quiescent (Iq) | 140 µA | 140 µA | 140 µA |
| Current - Supply (Max) | 320 µA | 320 µA | 320 µA |
| PSRR | 88dB ~ 50dB (10kHz ~ 1MHz) | - | - |
| Control Features | Enable, Soft Start | Enable, Soft Start | Enable, Soft Start |
| Protection Features | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

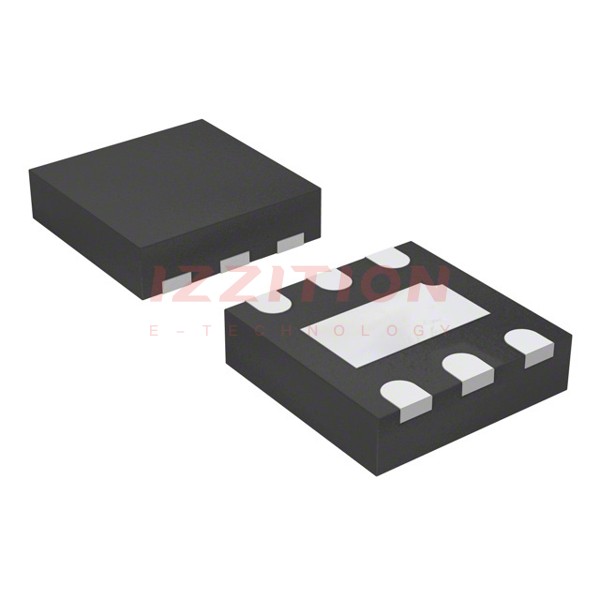

| Package / Case | 6-UDFN Exposed Pad, CSP | 6-UDFN Exposed Pad, CSP | 6-UDFN Exposed Pad, CSP |
| Supplier Device Package | 6-LFCSP-UD (2x2) | 6-LFCSP-UD (2x2) | 6-LFCSP-UD (2x2) |
