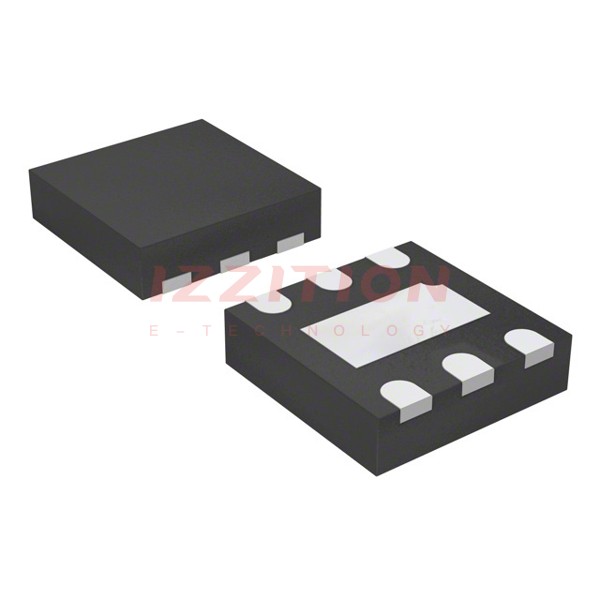

| Part Number | ADP7142ACPZN-R7 | ADP7182ACPZN-R7 |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active |
| Output Configuration | Positive | Negative |
| Output Type | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 40V | -28V |
| Voltage - Output (Min/Fixed) | 1.2V | -1.22V |
| Voltage - Output (Max) | 39.58V | -27.64V |
| Voltage Dropout (Max) | 0.42V @ 200mA | 0.36V @ 200mA |
| Current - Output | 200mA | 200mA |
| Current - Quiescent (Iq) | 140 µA | 53 µA |
| Current - Supply (Max) | 320 µA | 850 µA |
| PSRR | 88dB ~ 50dB (10kHz ~ 1MHz) | 66dB ~ 45dB (10kHz ~ 1MHz) |
| Control Features | Enable, Soft Start | Enable |
| Protection Features | Over Temperature, Short Circuit | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 6-UDFN Exposed Pad, CSP | 6-UDFN Exposed Pad, CSP |
| Supplier Device Package | 6-LFCSP-UD (2x2) | 6-LFCSP-UD (2x2) |
