Please send RFQ , we will respond immediately.
| Part Number | ADP7104ACPZ-3.0-R7 | ADP7104ACPZ-5.0-R7 | ADP7104ACPZ-3.3-R7 | ADP7104ACPZ-9.0-R7 | ADP7102ACPZ-3.0-R7 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 20V | 20V | 20V | 20V | 20V |
| Voltage - Output (Min/Fixed) | 3V | 5V | 3.3V | 9V | 3V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.55V @ 500mA | 0.55V @ 500mA | 0.55V @ 500mA | 0.55V @ 500mA | 0.325V @ 300mA |
| Current - Output | 500mA | 500mA | 500mA | 500mA | 300mA |
| Current - Quiescent (Iq) | 900 µA | 900 µA | 900 µA | 900 µA | 900 µA |
| Current - Supply (Max) | 1.6 mA | 1.6 mA | 1.6 mA | 1.6 mA | 1.4 mA |
| PSRR | - | 60dB ~ 50dB (10kHz ~ 100kHz) | 60dB ~ 50dB (10kHz ~ 100kHz) | - | - |
| Control Features | Enable, Power Good, Under Voltage Lockout | Enable, Power Good, Under Voltage Lockout | Enable, Power Good, Under Voltage Lockout | Enable, Power Good, Under Voltage Lockout | Enable, Power Good, Under Voltage Lockout |
| Protection Features | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

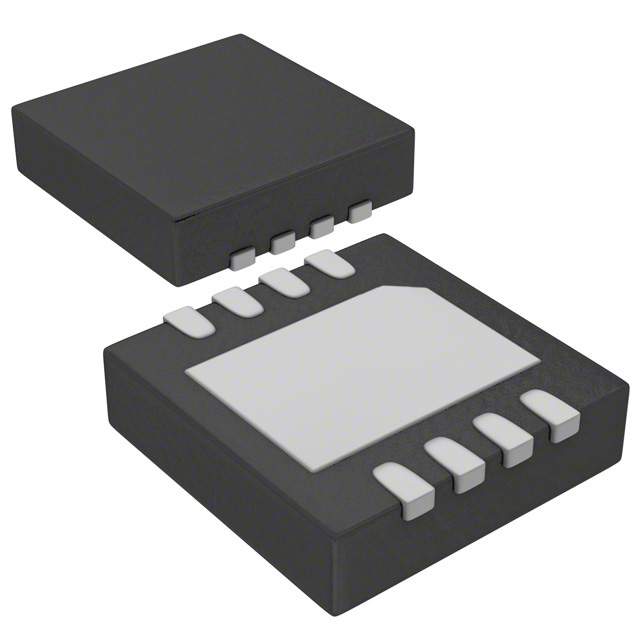

| Package / Case | 8-WFDFN Exposed Pad, CSP | 8-WFDFN Exposed Pad, CSP | 8-WFDFN Exposed Pad, CSP | 8-WFDFN Exposed Pad, CSP | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-WD (3x3) | 8-LFCSP-WD (3x3) | 8-LFCSP-WD (3x3) | 8-LFCSP-WD (3x3) | 8-LFCSP-WD (3x3) |
