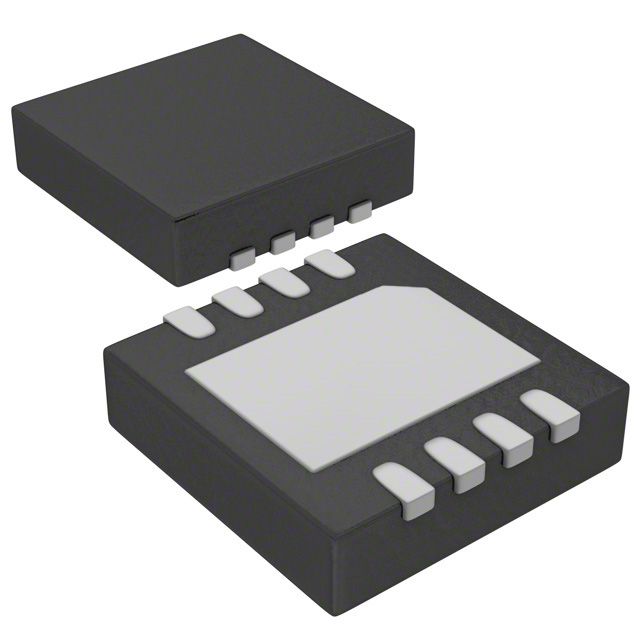

ADP7102ACPZ-5.0-R7
  • Share:

Analog Devices Inc. ADP7102ACPZ-5.0-R7

Manufacturer No:
ADP7102ACPZ-5.0-R7
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Datasheet:
ADP7102ACPZ-5.0-R7 Datasheet
ECAD Model:
-
Description:
IC REG LINEAR 5V 300MA 8LFCSP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):20V
Voltage - Output (Min/Fixed):5V
Voltage - Output (Max):-
Voltage Dropout (Max):0.325V @ 300mA
Current - Output:300mA
Current - Quiescent (Iq):900 µA
Current - Supply (Max):1.4 mA
PSRR:60dB ~ 50dB (10kHz ~ 100kHz)
Control Features:Enable, Power Good, Under Voltage Lockout
Protection Features:Over Current, Over Temperature, Reverse Polarity
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-WFDFN Exposed Pad, CSP
Supplier Device Package:8-LFCSP-WD (3x3)
0 Remaining View Similar

In Stock

$4.45
173

Please send RFQ , we will respond immediately.

Similar Products

Part Number ADP7102ACPZ-5.0-R7 ADP7104ACPZ-5.0-R7   ADP7105ACPZ-5.0-R7   ADP7102ACPZ-9.0-R7   ADP7102ACPZ-3.0-R7
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active Active Active
Output Configuration Positive Positive Positive Positive Positive
Output Type Fixed Fixed Fixed Fixed Fixed
Number of Regulators 1 1 1 1 1
Voltage - Input (Max) 20V 20V 20V 20V 20V
Voltage - Output (Min/Fixed) 5V 5V 5V 9V 3V
Voltage - Output (Max) - - - - -
Voltage Dropout (Max) 0.325V @ 300mA 0.55V @ 500mA 0.55V @ 500mA 0.325V @ 300mA 0.325V @ 300mA
Current - Output 300mA 500mA 500mA 300mA 300mA
Current - Quiescent (Iq) 900 µA 900 µA 900 µA 900 µA 900 µA
Current - Supply (Max) 1.4 mA 1.6 mA 1.6 mA 1.4 mA 1.4 mA
PSRR 60dB ~ 50dB (10kHz ~ 100kHz) 60dB ~ 50dB (10kHz ~ 100kHz) 60dB ~ 50dB (10kHz ~ 100kHz) - -
Control Features Enable, Power Good, Under Voltage Lockout Enable, Power Good, Under Voltage Lockout Enable, Power Good, Under Voltage Lockout Enable, Power Good, Under Voltage Lockout Enable, Power Good, Under Voltage Lockout
Protection Features Over Current, Over Temperature, Reverse Polarity Over Temperature, Short Circuit Over Current, Over Temperature, Reverse Polarity Over Current, Over Temperature, Reverse Polarity Over Current, Over Temperature, Reverse Polarity
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 8-WFDFN Exposed Pad, CSP 8-WFDFN Exposed Pad, CSP 8-WFDFN Exposed Pad, CSP 8-WFDFN Exposed Pad, CSP 8-WFDFN Exposed Pad, CSP
Supplier Device Package 8-LFCSP-WD (3x3) 8-LFCSP-WD (3x3) 8-LFCSP-WD (3x3) 8-LFCSP-WD (3x3) 8-LFCSP-WD (3x3)
