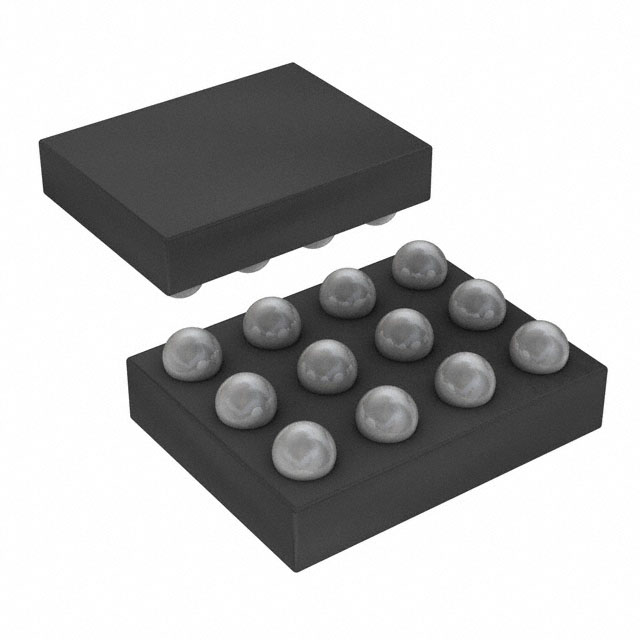

| Part Number | ADP5075ACBZ-R7 | ADP5076ACBZ-R7 | ADP5072ACBZ-R7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Function | Ratiometric, Step-Up/Step-Down | Step-Up | Step-Up |
| Output Configuration | Negative | Positive and Negative | Positive and Negative (Dual Rail) |
| Topology | Buck-Boost | Boost | Boost |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 2 | 2 |
| Voltage - Input (Min) | 2.85V | 2.85V | 2.85V |
| Voltage - Input (Max) | 15V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | Vin-39V | 0.8V | 0.8V |
| Voltage - Output (Max) | - | 35V, -30V | 35V |
| Current - Output | 800mA | 2A (Switch), 1.2A (Switch) | 600mA, 1A |
| Frequency - Switching | 1.2MHz, 2.4MHz | 1.2MHz, 2.4MHz | 1.2MHz, 2.4MHz |
| Synchronous Rectifier | No | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-UFBGA, WLCSP | 20-UFBGA, WLCSP | 20-UFBGA, WLCSP |
| Supplier Device Package | 12-WLCSP (1.61x2.18) | 20-WLCSP (1.61x2.18) | 20-WLCSP (1.61x2.18) |
