Please send RFQ , we will respond immediately.
| Part Number | ADP5070AREZ-R7 | ADP5071AREZ-R7 |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active |
| Function | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive and Negative (Dual Rail) | Positive and Negative (Dual Rail) |
| Topology | Boost, SEPIC | Boost, SEPIC |
| Output Type | Adjustable | Adjustable |
| Number of Outputs | 2 | 2 |
| Voltage - Input (Min) | 2.85V | 2.85V |
| Voltage - Input (Max) | 15V | 15V |
| Voltage - Output (Min/Fixed) | 0.8V, 1.6V | 0.8V, 1.6V |
| Voltage - Output (Max) | ±39V | ±39V |
| Current - Output | 600mA, 1A | 1.2A, 2A |
| Frequency - Switching | 1.2MHz, 2.4MHz | 1.2MHz, 2.4MHz |
| Synchronous Rectifier | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

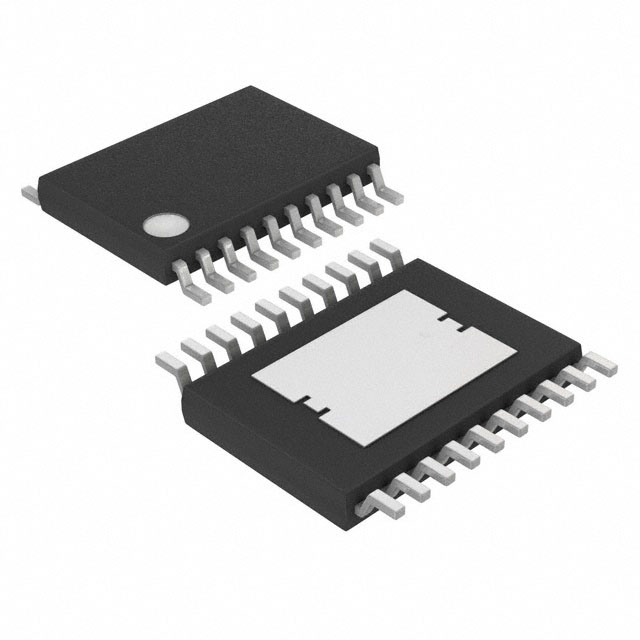

| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP | 20-TSSOP-EP |
