| Part Number | ADP5022ACBZ-2-R7 | ADP5022ACBZ-4-R7 | ADP5022ACBZ-6-R7 | ADP5022ACBZ-1-R7 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Topology | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) |
| Number of Outputs | 3 | 3 | 3 | 3 |
| Frequency - Switching | 3MHz | 3MHz | 3MHz | 3MHz |
| Voltage/Current - Output 1 | 1.2V, 600mA | 3.3V, 600mA | 1V, 600mA | 3.3V, 600mA |
| Voltage/Current - Output 2 | 1.8V, 600mA | 1.8V, 600mA | 1.8V, 600mA | 1.5V, 600mA |
| Voltage/Current - Output 3 | 2.8V, 150mA | 3.3V, 150mA | 2.5V, 150mA | 1.8V, 150mA |
| w/LED Driver | No | No | No | No |
| w/Supervisor | No | No | No | No |
| w/Sequencer | No | No | No | No |
| Voltage - Supply | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

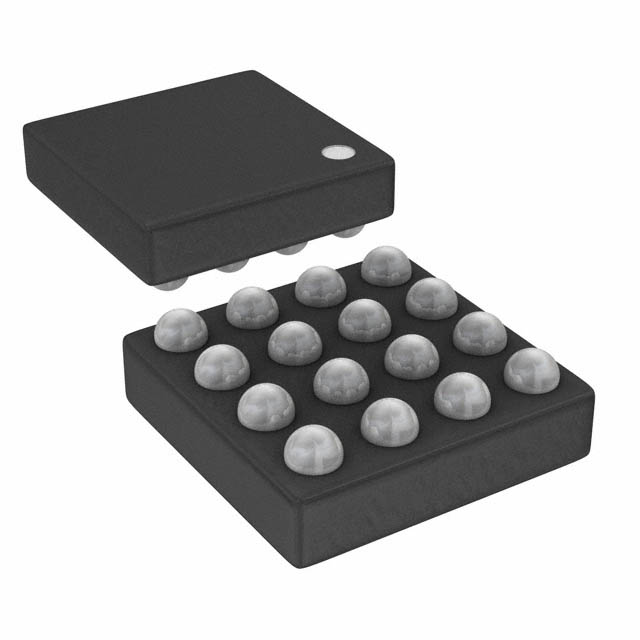

| Package / Case | 16-WFBGA, WLCSP | 16-WFBGA, WLCSP | 16-WFBGA, WLCSP | 16-WFBGA, WLCSP |
| Supplier Device Package | 16-WLCSP (2.08x2.08) | 16-WLCSP (2.08x2.08) | 16-WLCSP (2.08x2.08) | 16-WLCSP (2.08x2.08) |
