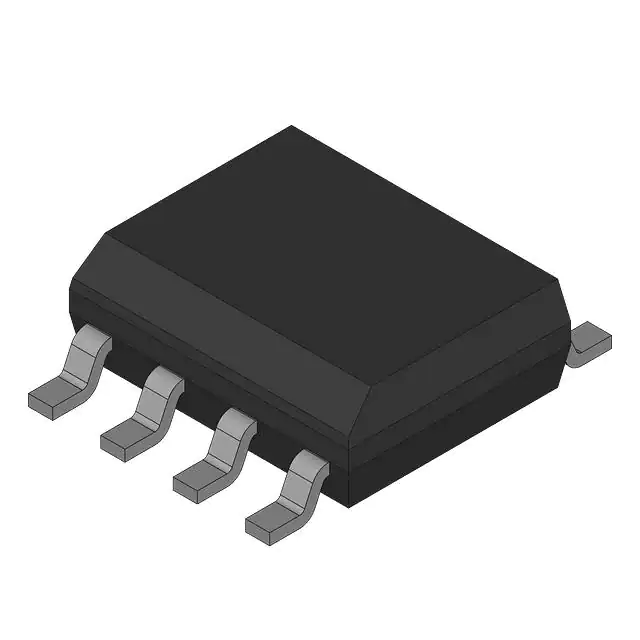

| Part Number | ADP3413JR | ADP3417JR | ADP3416JR | ADP3418JR | ADP3414JR | ADP3412JR |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Driven Configuration | Half-Bridge | High-Side | High-Side and Low-Side | High-Side | High-Side | Half-Bridge |
| Channel Type | Synchronous | Synchronous | Synchronous | Synchronous | Synchronous | Synchronous |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel, P-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 4.15V ~ 7.5V | 4.15V ~ 13.2V | 4.15V ~ 7.5V | 4.15V ~ 13.2V | 4.15V ~ 7.5V | 4.15V ~ 7.5V |
| Logic Voltage - VIL, VIH | 0.8V, 2.3V | 0.8V, 2.5V | 0.8V, 2.3V | 0.8V, 2.8V | 0.8V, 2.3V | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | - | - | - | - | - | - |
| Input Type | Non-Inverting | Inverting, Non-Inverting | Non-Inverting | Inverting, Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 30 V | - | - | - | - | 30 V |
| Rise / Fall Time (Typ) | 27ns, 19ns | - | - | - | - | 20ns, 20ns |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 125°C (TJ) | 0°C ~ 70°C (TA) | 0°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC |
