| Part Number | ADP2360ACPZ-R7 | ADP2370ACPZ-R7 | ADP2390ACPZ-R7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 3.2V | 4.5V |
| Voltage - Input (Max) | 60V | 15V | 18V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 0.6V |
| Voltage - Output (Max) | 60V | 14V | 18V |
| Current - Output | 50mA | 800mA | 12A |
| Frequency - Switching | - | 600kHz ~ 1.2MHz | 200kHz ~ 2.2MHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

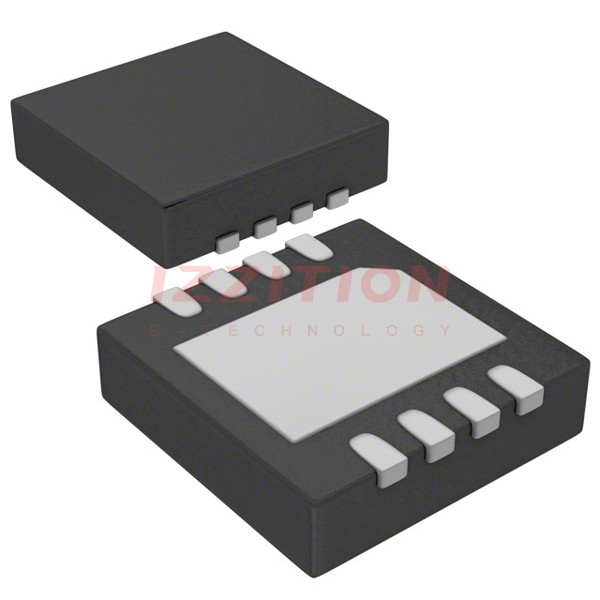

| Package / Case | 8-WDFN Exposed Pad, CSP | 8-WFDFN Exposed Pad, CSP | 32-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP (3x3) | 8-LFCSP-WD (3x3) | 32-LFCSP-VQ (5x5) |
