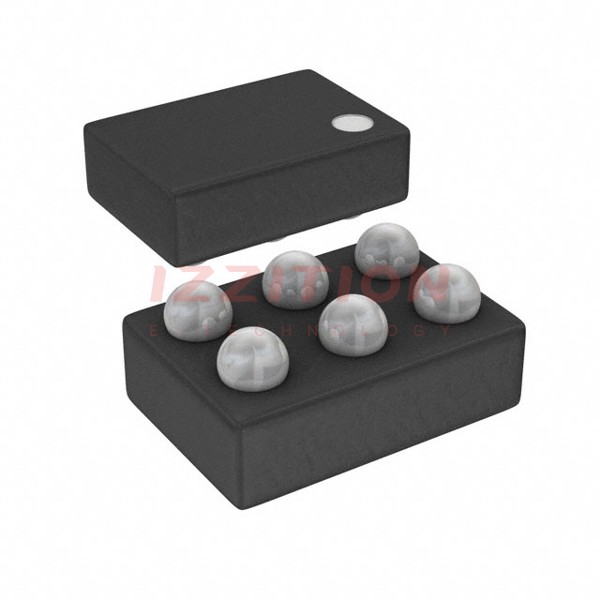

| Part Number | ADP220ACBZ-2812R7 | ADP220ACBZ-2818R7 | ADP220ACBZ-1812R7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 2 | 2 | 2 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V, 2.8V | 1.8V, 2.8V | 1.2V, 1.8V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | -, 0.23V @ 200mA | -, 0.23V @ 200mA | - |
| Current - Output | 200mA | 200mA | 200mA |
| Current - Quiescent (Iq) | 120 µA | 120 µA | 120 µA |
| Current - Supply (Max) | 220 µA | 220 µA | 220 µA |
| PSRR | 68dB ~ 40dB (100Hz ~ 1MHz), - | 68dB ~ 40dB (100Hz ~ 1MHz), - | - |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-WFBGA, WLCSP | 6-WFBGA, WLCSP | 6-WFBGA, WLCSP |
| Supplier Device Package | 6-WLCSP (1.45x0.95) | 6-WLCSP (1.45x0.95) | 6-WLCSP (1.45x0.95) |
