| Part Number | ADP2118ACPZ-1.5-R7 | ADP2119ACPZ-1.5-R7 | ADP2118ACPZ-1.8-R7 | ADP2118ACPZ-2.5-R7 | ADP2118ACPZ-1.0-R7 | ADP2118ACPZ-1.2-R7 |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.3V | 2.3V | 2.3V | 2.3V | 2.3V | 2.3V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.5V | 1.5V | 1.8V | 2.5V | 1V | 1.2V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Current - Output | 3A | 2A | 3A | 3A | 3A | 3A |
| Frequency - Switching | 600kHz, 1.2MHz | 1.2MHz | 600kHz, 1.2MHz | 600kHz, 1.2MHz | 600kHz, 1.2MHz | 600kHz, 1.2MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

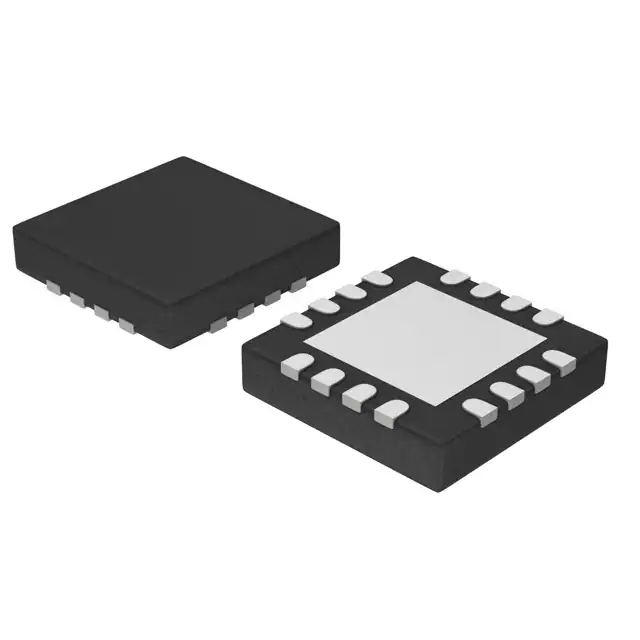

| Package / Case | 16-WQFN Exposed Pad, CSP | 10-VFDFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-WQ (4x4) | 10-LFCSP-WD (3x3) | 16-LFCSP-WQ (4x4) | 16-LFCSP-WQ (4x4) | 16-LFCSP-WQ (4x4) | 16-LFCSP-WQ (4x4) |
