Please send RFQ , we will respond immediately.

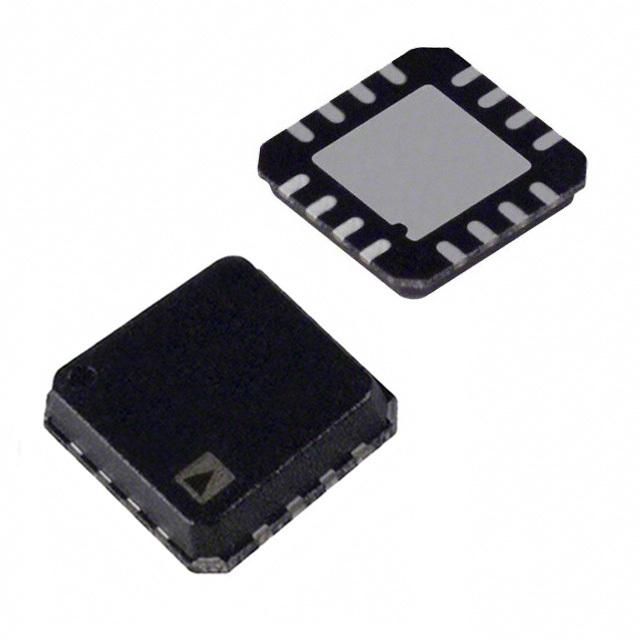

| Part Number | ADP2105ACPZ-1.5-R7 | ADP2105ACPZ-1.8-R7 | ADP2107ACPZ-1.5-R7 | ADP2106ACPZ-1.5-R7 | ADP2105ACPZ-1.2-R7 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active |
| Function | - | Step-Down | Step-Down | - | Step-Down |
| Output Configuration | - | Positive | Positive | - | Positive |
| Topology | - | Buck | Buck | - | Buck |
| Output Type | - | Fixed | Fixed | - | Fixed |
| Number of Outputs | - | 1 | 1 | - | 1 |
| Voltage - Input (Min) | - | 2.7V | 2.7V | - | 2.7V |
| Voltage - Input (Max) | - | 5.5V | 5.5V | - | 5.5V |
| Voltage - Output (Min/Fixed) | - | 1.8V | 1.5V | - | 1.2V |
| Voltage - Output (Max) | - | - | - | - | - |
| Current - Output | - | 1A | 2A | - | 1A |
| Frequency - Switching | - | 1.2MHz | 1.2MHz | - | 1.2MHz |
| Synchronous Rectifier | - | Yes | Yes | - | Yes |
| Operating Temperature | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | - | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-WQ (4x4) | 16-LFCSP-WQ (4x4) | 16-LFCSP-WQ (4x4) | 16-LFCSP-WQ (4x4) | 16-LFCSP-WQ (4x4) |
