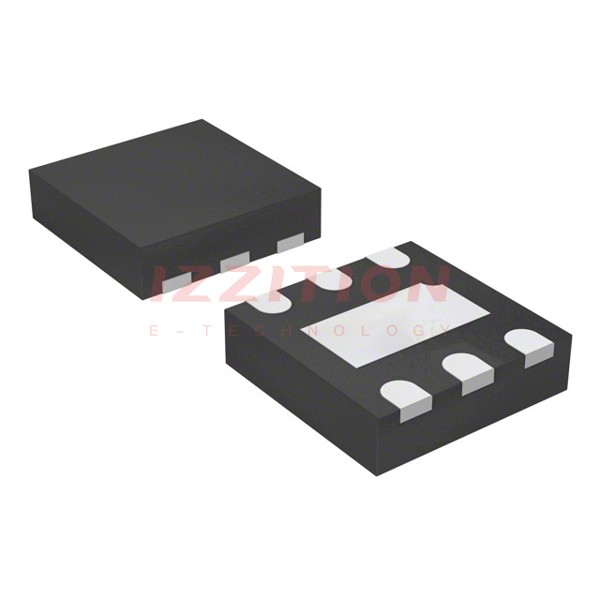

| Part Number | ADP196ACPZN-01-R7 | ADP197ACPZN-01-R7 |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | 3A | 3A |
| Rds On (Typ) | 10mOhm | 27mOhm |
| Input Type | Non-Inverting | Non-Inverting |
| Features | Load Discharge, Slew Rate Controlled | Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Over Temperature | Over Temperature |
| Operating Temperature | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 6-LFCSP-UD (2x2) | 6-LFCSP-UD (2x2) |
| Package / Case | 6-UDFN Exposed Pad, CSP | 6-UDFN Exposed Pad, CSP |
