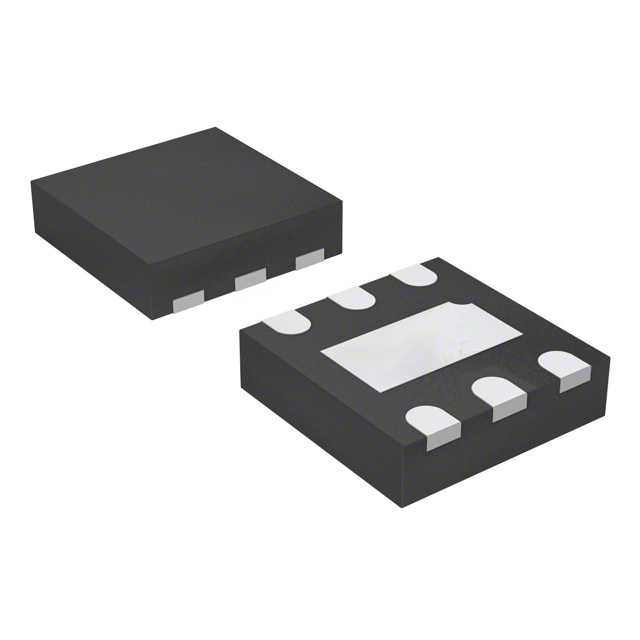

| Part Number | ADP195ACPZ-R7 | ADP198ACPZ-R7 | ADP195ACBZ-R7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Switch Type | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | P-Channel | P-Channel | P-Channel |
| Interface | On/Off | On/Off | On/Off |
| Voltage - Load | 1.1V ~ 3.6V | 1.65V ~ 6.5V | 1.1V ~ 3.6V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required |
| Current - Output (Max) | 1.1A | 1A | 1.1A |
| Rds On (Typ) | 50mOhm | 75mOhm | 50mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Slew Rate Controlled | Slew Rate Controlled | Slew Rate Controlled |
| Fault Protection | Reverse Current | Reverse Current | Reverse Current |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-LFCSP-UD (2x2) | 8-LFCSP-UD (2x2) | 4-WLCSP (0.95x1.03) |
| Package / Case | 6-UDFN Exposed Pad, CSP | 8-UFDFN Exposed Pad, CSP | 4-UFBGA, WLCSP |
