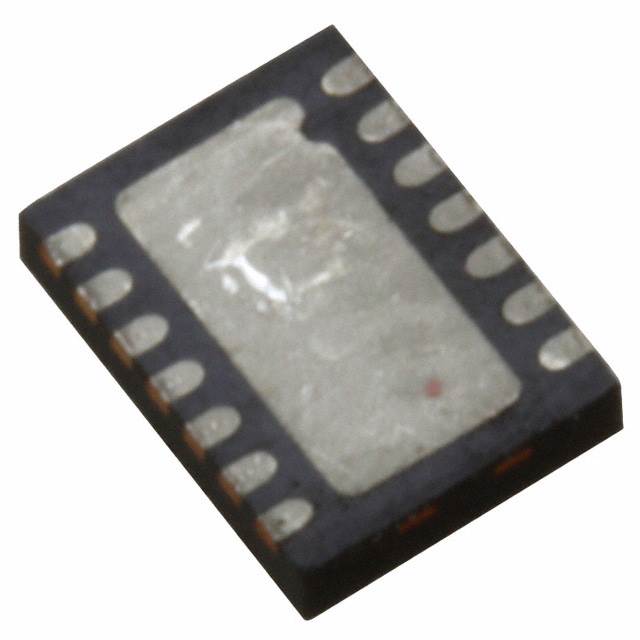

| Part Number | ADP1878ACPZ-0.3-R7 | ADP1879ACPZ-0.3-R7 | ADP1878ACPZ-0.6-R7 | ADP1870ACPZ-0.3-R7 | ADP1871ACPZ-0.3-R7 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 20V | 2.95V ~ 20V | 2.95V ~ 20V | 2.95V ~ 20V | 2.95V ~ 20V |
| Frequency - Switching | 300kHz | 300kHz | 600kHz | 300kHz | 300kHz |
| Duty Cycle (Max) | 84% | 84% | 65% | 84% | 84% |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Clock Sync | No | No | No | No | No |
| Serial Interfaces | - | - | - | - | - |
| Control Features | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable | Enable |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad, CSP | 14-WFDFN Exposed Pad, CSP | 14-WFDFN Exposed Pad, CSP | 10-VFDFN Exposed Pad, CSP | 10-VFDFN Exposed Pad, CSP |
| Supplier Device Package | 14-LFCSP-WD (4x3) | 14-LFCSP-WD (4x3) | 14-LFCSP-WD (4x3) | 10-LFCSP-WD (3x3) | 10-LFCSP-WD (3x3) |
