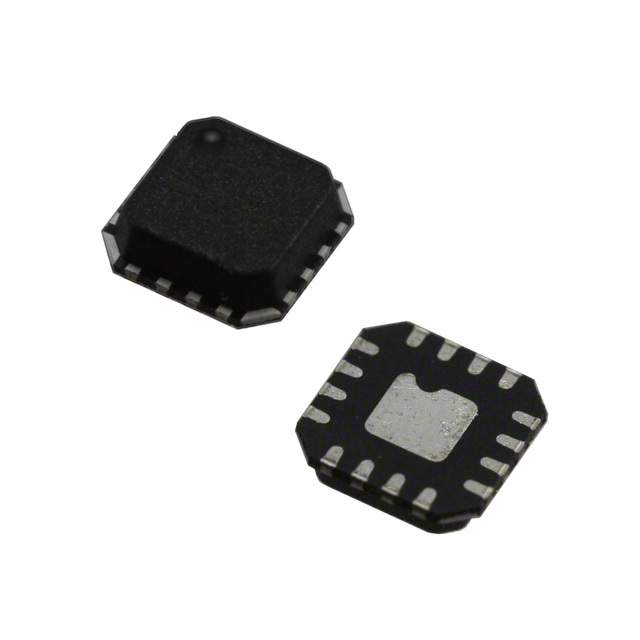

| Part Number | ADP1764ACPZ-1.3-R7 | ADP1764ACPZ-1.5-R7 | ADP1754ACPZ-1.3-R7 | ADP1761ACPZ-1.3-R7 | ADP1762ACPZ-1.3-R7 | ADP1763ACPZ-1.3-R7 | ADP1764ACPZ-1.0-R7 | ADP1764ACPZ-1.1-R7 | ADP1764ACPZ-1.2-R7 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 1.98V | 1.98V | 3.6V | 1.98V | 1.98V | 1.98V | 1.98V | 1.98V | 1.98V |
| Voltage - Output (Min/Fixed) | 1.3V | 1.5V | 1.3V | 1.3V | 1.3V | 1.3V | 1V | 1.1V | 1.2V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.075V @ 4A | 0.075V @ 4A | 0.2V @ 1.2A | 0.053V @ 1A | 0.095V @ 2A | 0.145V @ 3A | 0.075V @ 4A | 0.075V @ 4A | 0.075V @ 4A |
| Current - Output | 4A | 4A | 1.2A | 1A | 2A | 3A | 4A | 4A | 4A |
| Current - Quiescent (Iq) | 17 mA | 17 mA | 800 µA | 8 mA | 8 mA | 8 mA | 17 mA | 17 mA | 17 mA |
| Current - Supply (Max) | 23 mA | 23 mA | 1.4 mA | 11 mA | 14 mA | 16 mA | 23 mA | 23 mA | 23 mA |
| PSRR | 69dB ~ 35dB (10kHz ~ 1MHz) | 69dB ~ 35dB (10kHz ~ 1MHz) | - | 67dB ~ 35dB (10kHz ~ 1MHz) | 63dB ~ 34dB (10kHz ~ 1MHz) | 62dB ~ 33dB (10kHz ~ 1MHz) | 69dB ~ 35dB (10kHz ~ 1MHz) | 69dB ~ 35dB (10kHz ~ 1MHz) | 69dB ~ 35dB (10kHz ~ 1MHz) |
| Control Features | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start |
| Protection Features | Current Limit, Thermal Overload | Current Limit, Thermal Overload | Over Current, Over Temperature, Short Circuit, Reverse Polarity, UVLO | Current Limit, Thermal Overload | Current Limit, Thermal Overload | Current Limit, Thermal Overload | Current Limit, Thermal Overload | Current Limit, Thermal Overload | Current Limit, Thermal Overload |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (3x3) | 16-LFCSP (3x3) | 16-LFCSP (4x4) | 16-LFCSP (3x3) | 16-LFCSP (3x3) | 16-LFCSP (3x3) | 16-LFCSP (3x3) | 16-LFCSP (3x3) | 16-LFCSP (3x3) |
