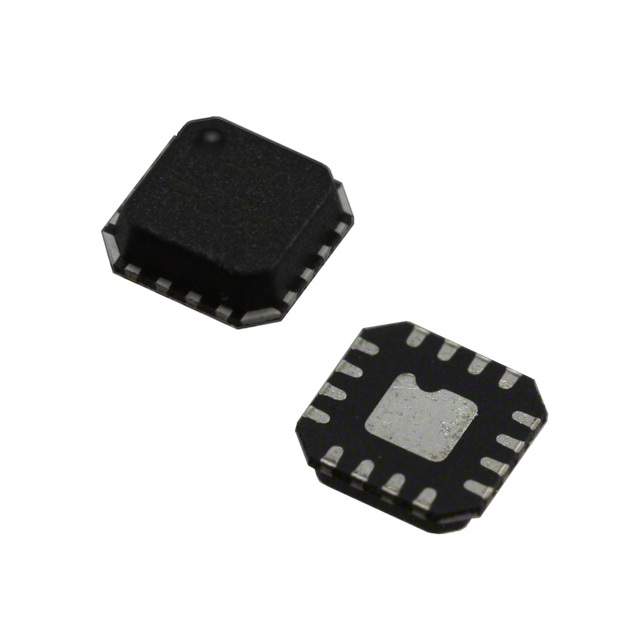

| Part Number | ADP1764ACPZ-0.9-R7 | ADP1761ACPZ-0.9-R7 | ADP1762ACPZ-0.9-R7 | ADP1763ACPZ-0.9-R7 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 1.98V | 1.98V | 1.98V | 1.98V |
| Voltage - Output (Min/Fixed) | 0.9V | 0.9V | 0.9V | 0.9V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.075V @ 4A | 0.053V @ 1A | 0.095V @ 2A | 0.145V @ 3A |
| Current - Output | 4A | 1A | 2A | 3A |
| Current - Quiescent (Iq) | 17 mA | 8 mA | 8 mA | 8 mA |
| Current - Supply (Max) | 23 mA | 11 mA | 14 mA | 16 mA |
| PSRR | 69dB ~ 35dB (10kHz ~ 1MHz) | 67dB ~ 35dB (10kHz ~ 1MHz) | 63dB ~ 34dB (10kHz ~ 1MHz) | 62dB ~ 33dB (10kHz ~ 1MHz) |
| Control Features | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start |
| Protection Features | Current Limit, Thermal Overload | Current Limit, Thermal Overload | Current Limit, Thermal Overload | Current Limit, Thermal Overload |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (3x3) | 16-LFCSP (3x3) | 16-LFCSP (3x3) | 16-LFCSP (3x3) |
