| Part Number | ADP1740ACPZ-1.5-R7 | ADP1740ACPZ-1.8-R7 | ADP1740ACPZ-2.5-R7 | ADP1740ACPZ-1.0-R7 | ADP1740ACPZ-1.1-R7 | ADP1740ACPZ-1.2-R7 | ADP1740ACPZ-1.3-R7 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V |
| Voltage - Output (Min/Fixed) | 1.5V | 1.8V | 2.5V | 1V | 1.1V | 1.2V | 1.3V |
| Voltage - Output (Max) | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | - | 0.28V @ 2A | 0.28V @ 2A | - | - | - | 0.28V @ 2A |
| Current - Output | 2A | 2A | 2A | 2A | 2A | 2A | 2A |
| Current - Quiescent (Iq) | 800 µA | 800 µA | 800 µA | 800 µA | 800 µA | 800 µA | 800 µA |
| Current - Supply (Max) | 1.8 mA | 1.8 mA | 1.8 mA | 1.8 mA | 1.8 mA | 1.8 mA | 1.8 mA |
| PSRR | - | - | 56dB ~ 51dB (1kHz ~ 100kHz) | - | - | - | - |
| Control Features | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, Short Circuit, Reverse Polarity, UVLO |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

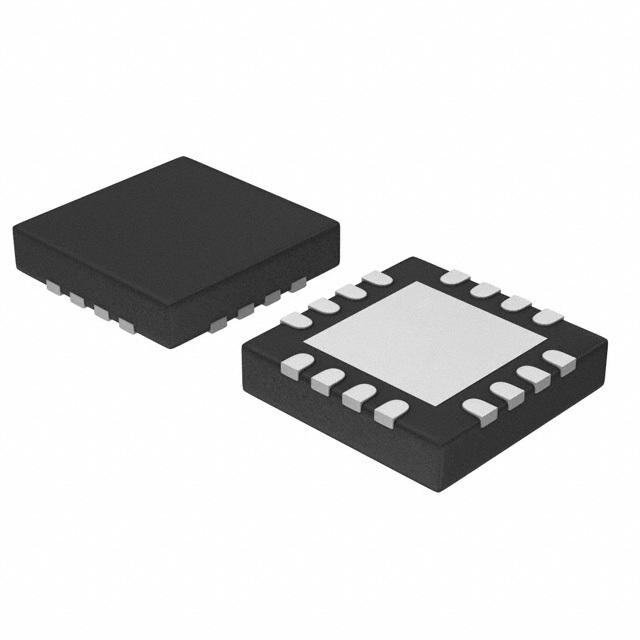

| Package / Case | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (4x4) | 16-LFCSP (4x4) | 16-LFCSP (4x4) | 16-LFCSP (4x4) | 16-LFCSP (4x4) | 16-LFCSP (4x4) | 16-LFCSP (4x4) |
