| Part Number | ADP172ACBZ-1.0-R7 | ADP172ACBZ-1.2-R7 | ADP172ACBZ-1.8-R7 | ADP172ACBZ-3.0-R7 | ADP172ACBZ-1.5-R7 | ADP172ACBZ-1.7-R7 |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V |
| Voltage - Output (Min/Fixed) | 1V | 1.2V | 1.8V | 3V | 1.5V | 1.7V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | - | - | 0.1V @ 300mA | 0.1V @ 300mA | - | 0.1V @ 300mA |
| Current - Output | 300mA | 300mA | 300mA | 300mA | 300mA | 300mA |
| Current - Quiescent (Iq) | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA | 60 µA |
| Current - Supply (Max) | 260 nA | 260 nA | 260 nA | 260 nA | 260 nA | 260 nA |
| PSRR | 73dB ~ 47dB (1kHz ~ 100kHz) | 73dB ~ 47dB (1kHz ~ 100kHz) | 73dB ~ 47dB (1kHz ~ 100kHz) | 73dB ~ 47dB (1kHz ~ 100kHz) | 73dB ~ 47dB (1kHz ~ 100kHz) | 73dB ~ 47dB (1kHz ~ 100kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

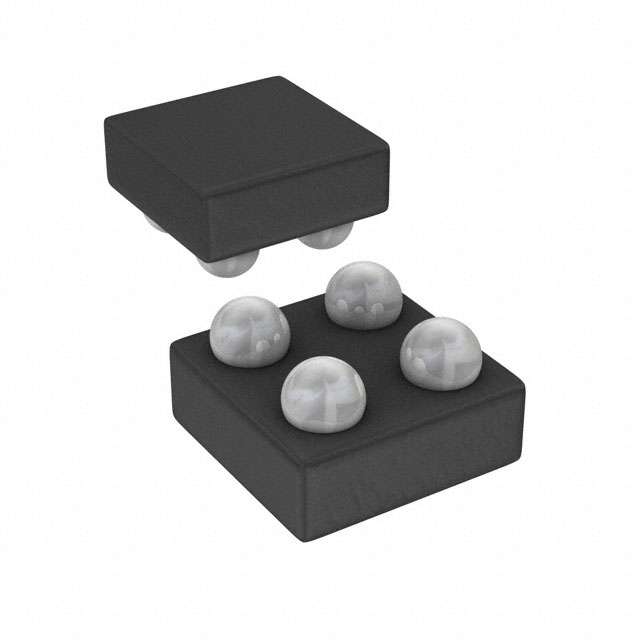

| Package / Case | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.95x1.03) | 4-WLCSP (0.95x1.03) | 4-WLCSP (0.95x1.03) | 4-WLCSP (0.95x1.03) | 4-WLCSP (0.95x1.03) | 4-WLCSP (0.95x1.03) |
