| Part Number | ADP165ACPZN-2.3-R7 | ADP165ACPZN-3.3-R7 | ADP166ACPZN-2.3-R7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 2.3V | 3.3V | 2.3V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.225V @ 150mA | 0.225V @ 150mA | 0.225V @ 150mA |
| Current - Output | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 2.4 µA | 2.4 µA | 2.4 µA |
| Current - Supply (Max) | 6.2 µA | 6.2 µA | 6.2 µA |
| PSRR | - | 60dB ~ 50dB (100Hz ~ 1kHz) | - |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

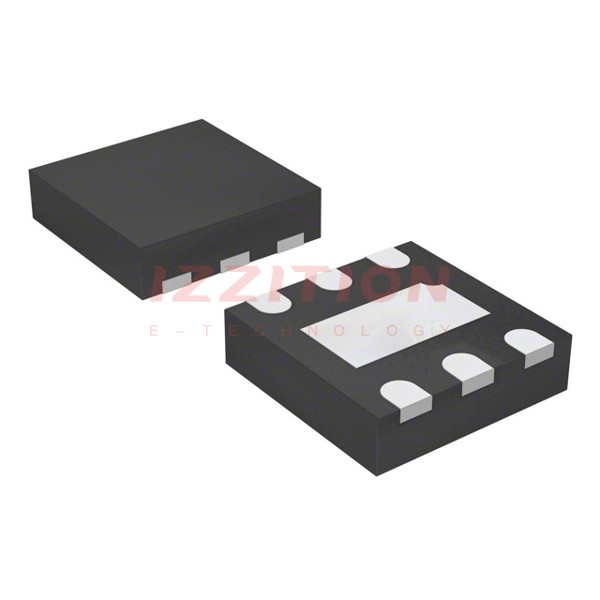

| Package / Case | 6-UDFN Exposed Pad, CSP | 6-UDFN Exposed Pad, CSP | 6-UDFN Exposed Pad, CSP |
| Supplier Device Package | 6-LFCSP-UD (2x2) | 6-LFCSP-UD (2x2) | 6-LFCSP-UD (2x2) |
