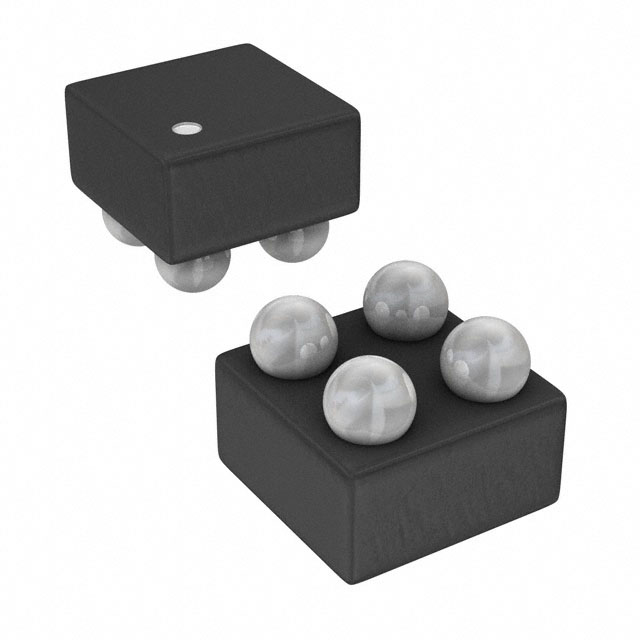

| Part Number | ADP151ACBZ-2.6-R7 | ADP151ACBZ-2.8-R7 | ADP150ACBZ-2.6-R7 | ADP151ACBZ-2.1-R7 | ADP151ACBZ-2.5-R7 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 2.6V | 2.8V | 2.6V | 2.1V | 2.5V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.2V @ 200mA | 0.2V @ 200mA | 0.16V @ 150mA | - | 0.2V @ 200mA |
| Current - Output | 200mA | 200mA | 150mA | 200mA | 200mA |
| Current - Quiescent (Iq) | 20 µA | 20 µA | 22 µA | 20 µA | 20 µA |
| Current - Supply (Max) | 350 µA | 350 µA | 320 µA | 350 µA | 350 µA |
| PSRR | - | - | - | - | - |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-WFBGA, WLCSP | 4-WFBGA, WLCSP | 4-WFBGA, WLCSP | 4-WFBGA, WLCSP | 4-WFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) |
