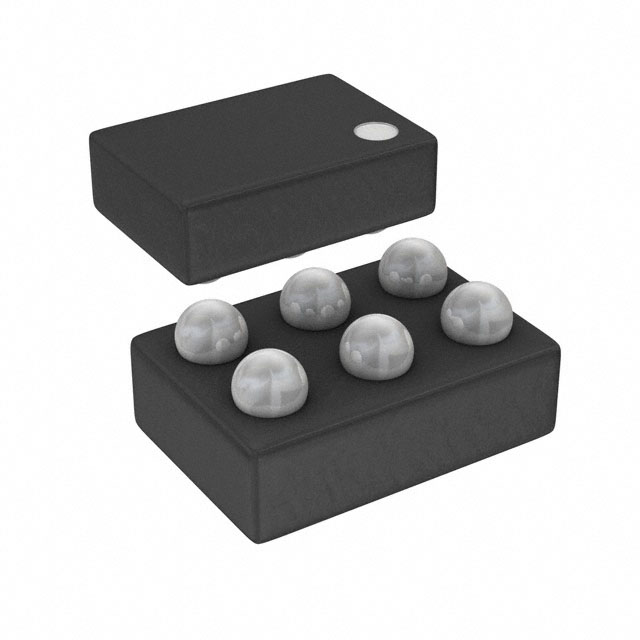

| Part Number | ADP1290ACBZ-R7 | ADP190ACBZ-R7 | ADP1190ACBZ-R7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Switch Type | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 5 (4 Signal) |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | N-Channel | P-Channel | P-Channel |
| Interface | On/Off | On/Off | On/Off |
| Voltage - Load | 2.3V ~ 13.2V | 1.1V ~ 3.6V | 1.4V ~ 3.6V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required |
| Current - Output (Max) | 2A | 500mA | 1A |
| Rds On (Typ) | 40mOhm | 80mOhm | 65mOhm |
| Input Type | - | Non-Inverting | Non-Inverting |
| Features | - | Slew Rate Controlled | Load Discharge |
| Fault Protection | - | - | - |
| Operating Temperature | -40°C ~ 105°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-WLCSP (1.45x0.95) | 4-WLCSP (0.76x0.76) | 12-WLCSP (1.2x1.6) |
| Package / Case | 6-WFBGA, WLCSP | 4-WFBGA, WLCSP | 12-UFBGA, WLCSP |
