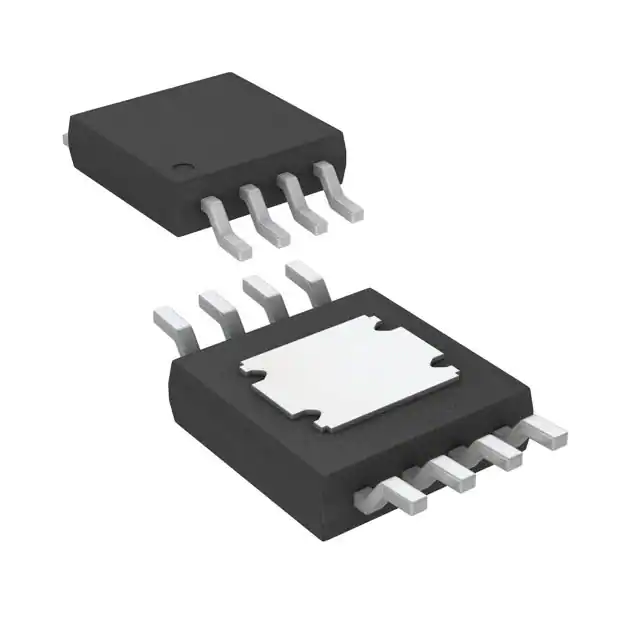

| Part Number | ADP124ARHZ-3.3-R7 | ADP124ARHZ-3.0-R7 |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V | 3V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.23V @ 500mA | 0.23V @ 500mA |
| Current - Output | 500mA | 500mA |
| Current - Quiescent (Iq) | 105 µA | 105 µA |
| Current - Supply (Max) | 280 µA | 280 µA |
| PSRR | 60dB (10kHz ~ 100kHz) | 60dB (10kHz ~ 100kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP | 8-MSOP-EP |
