| Part Number | ADP122ACPZ-2.5-R7 | ADP122ACPZ-2.8-R7 | ADP122ACPZ-2.6-R7 | ADP122ACPZ-2.0-R7 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 2.5V | 2.8V | 2.6V | 2V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.15V @ 300mA | 0.15V @ 300mA | 0.15V @ 300mA | - |
| Current - Output | 300mA | 300mA | 300mA | 300mA |
| Current - Quiescent (Iq) | 105 µA | 105 µA | 105 µA | 105 µA |
| Current - Supply (Max) | 240 µA | 240 µA | 240 µA | 240 µA |
| PSRR | 60dB (10kHz ~ 100kHz) | 60dB (10kHz ~ 100kHz) | 60dB (10kHz ~ 100kHz) | 60dB (10kHz ~ 100kHz) |
| Control Features | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

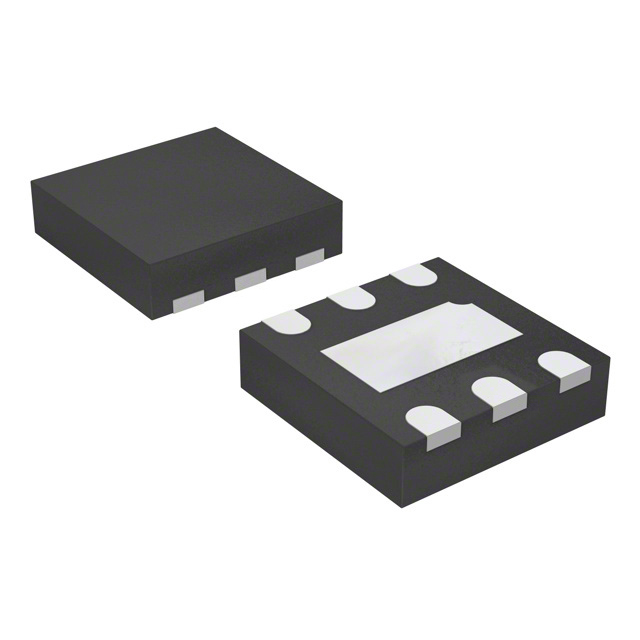

| Package / Case | 6-UDFN Exposed Pad, CSP | 6-UDFN Exposed Pad, CSP | 6-UDFN Exposed Pad, CSP | 6-UDFN Exposed Pad, CSP |
| Supplier Device Package | 6-LFCSP-UD (2x2) | 6-LFCSP-UD (2x2) | 6-LFCSP-UD (2x2) | 6-LFCSP-UD (2x2) |
