| Part Number | ADP121-ACBZ18R7 | ADP121-ACBZ28R7 | ADP121-ACBZ12R7 | ADP121-ACBZ15R7 | ADP121-ACBZ188R7 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 2.8V | 1.2V | 1.5V | 1.875V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | - | - | - | - | - |
| Current - Output | 150mA | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 21 µA | 21 µA | 21 µA | 21 µA | 21 µA |
| Current - Supply (Max) | 40 µA | 40 µA | 40 µA | 40 µA | 40 µA |
| PSRR | - | - | 70dB (10kHz) | - | - |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

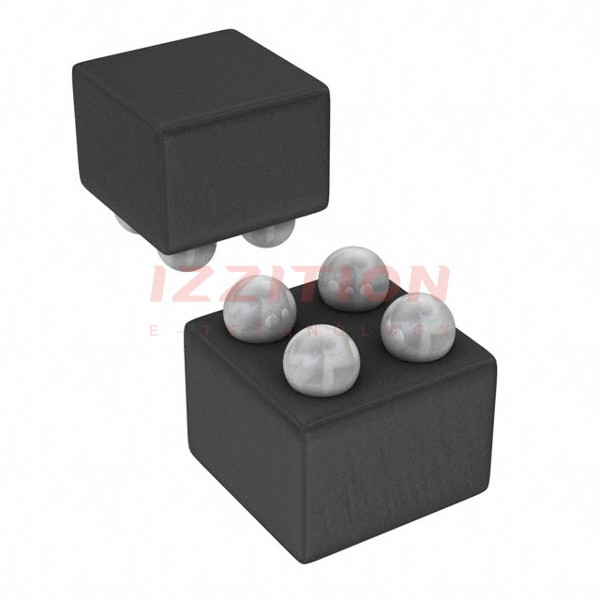

| Package / Case | 4-WFBGA, WLCSP | 4-WFBGA, WLCSP | 4-WFBGA, WLCSP | 4-WFBGA, WLCSP | 4-WFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.82x0.82) | 4-WLCSP (0.82x0.82) | 4-WLCSP (0.82x0.82) | 4-WLCSP (0.82x0.82) | 4-WLCSP (0.82x0.82) |
