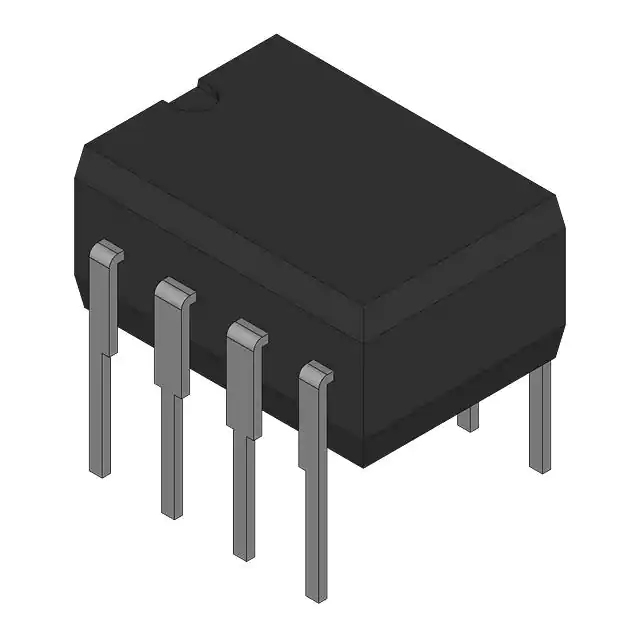

| Part Number | ADP1109AN | ADP1109AR | ADP1108AN | ADP1109AAN |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Function | Step-Up | Step-Up | Step-Up/Step-Down | Step-Up |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Boost | Boost | Buck-Boost | Boost |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2V | 2V | 2V | 2V |
| Voltage - Input (Max) | 9V | 9V | 30V | 9V |
| Voltage - Output (Min/Fixed) | 1.25V | 1.25V | 1.245V | 1.25V |
| Voltage - Output (Max) | 12V | 12V | 23.4V | 9V |
| Current - Output | 1.2A (Switch) | 1.2A (Switch) | - | 1.2A (Switch) |
| Frequency - Switching | 120kHz | 120kHz | 19kHz | 120kHz |
| Synchronous Rectifier | No | No | No | No |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP | 8-SOIC | 8-PDIP | 8-PDIP |
