Please send RFQ , we will respond immediately.

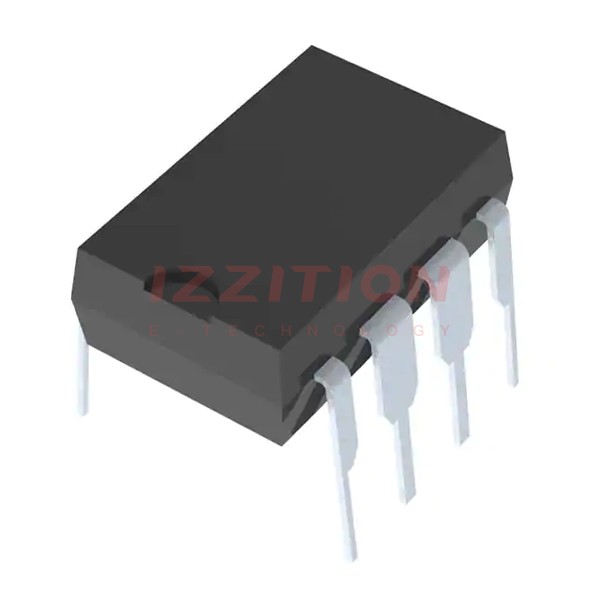

| Part Number | ADM8698AN | ADM8698ARN | ADM8699AN | ADM8698ANZ | ADM8690AN | ADM8691AN | ADM8692AN | ADM8693AN | ADM8694AN | ADM8696AN | ADM8697AN |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Battery Backup Circuit | Battery Backup Circuit | Battery Backup Circuit | Battery Backup Circuit | Battery Backup Circuit | Battery Backup Circuit | Battery Backup Circuit |
| Number of Voltages Monitored | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Threshold | 4.65V | 4.65V | 4.65V | 4.65V | 4.65V | 4.65V | - | 4.4V | 4.65V | 1.3V | 1.3V |
| Output | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Push-Pull | Push-Pull, Totem Pole | Push-Pull, Push-Pull | Push-Pull, Totem Pole | Push-Pull, Push-Pull | Push-Pull, Push-Pull |
| Reset | Active Low | Active Low | Active Low | Active Low | Active Low | Active High/Active Low | Active Low | Active High/Active Low | Active Low | Active High/Active Low | Active High/Active Low |
| Reset Timeout | 140ms Minimum | 140ms Minimum | 140ms Minimum | 140ms Minimum | 35ms Minimum | 35ms Minimum | 35ms Minimum | 35ms Minimum | 140ms Minimum | 35ms Minimum | 35ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C | - | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP | 8-SOIC | 8-PDIP | 8-PDIP | 8-PDIP | 16-PDIP | 8-PDIP | 16-PDIP | 16-PDIP | 16-PDIP | 16-PDIP |
