Please send RFQ , we will respond immediately.
| Part Number | ADM7160ACPZN1.8-R2 | ADM7160ACPZN1.8-R7 |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 1.8V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.23V @ 200mA | 0.23V @ 200mA |
| Current - Output | 200mA | 200mA |
| Current - Quiescent (Iq) | 20 µA | 20 µA |
| Current - Supply (Max) | 350 µA | 350 µA |
| PSRR | 54dB ~ 43dB (100kHz ~ 1MHz) | 54dB ~ 43dB (100kHz ~ 1MHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

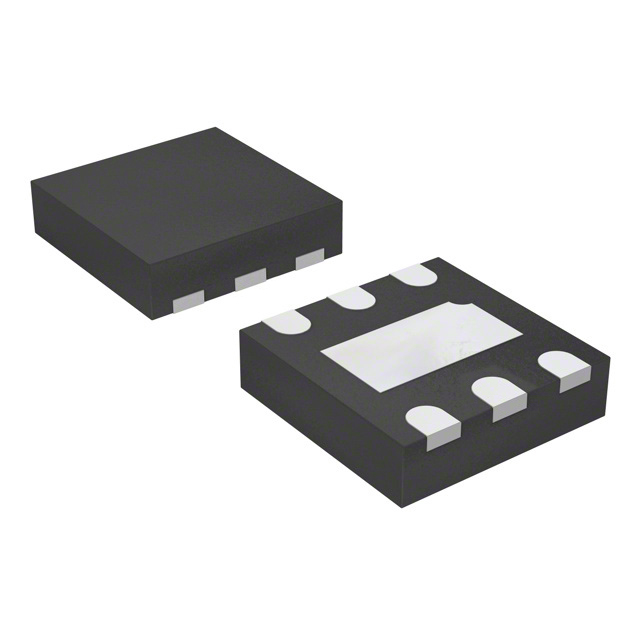

| Package / Case | 6-UDFN Exposed Pad, CSP | 6-UDFN Exposed Pad, CSP |
| Supplier Device Package | 6-LFCSP-UD (2x2) | 6-LFCSP-UD (2x2) |
