Please send RFQ , we will respond immediately.

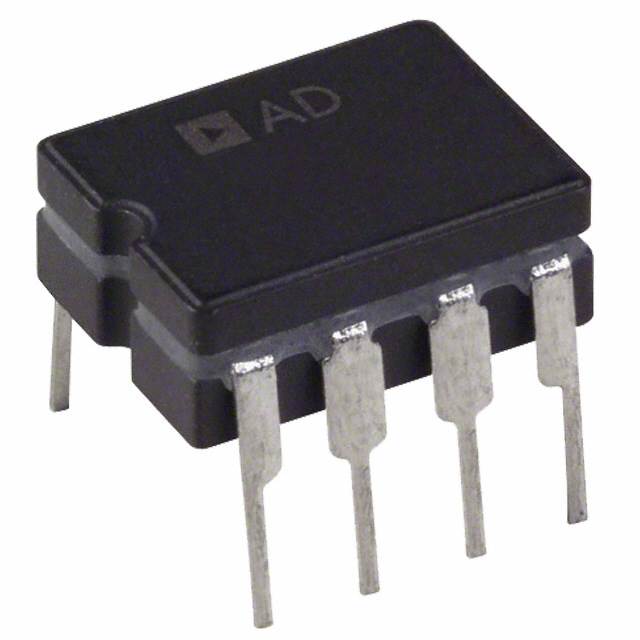

| Part Number | ADM690AQ | ADM690SQ | ADM691AQ | ADM695AQ | ADM696AQ | ADM697AQ | ADM690AN |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Battery Backup Circuit | Battery Backup Circuit | Battery Backup Circuit | Battery Backup Circuit | Battery Backup Circuit | Battery Backup Circuit | Battery Backup Circuit |
| Number of Voltages Monitored | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Threshold | 4.65V | 4.65V | 4.65V | 4.65V | 1.3V | 1.3V | 4.65V |
| Output | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Open Drain, Push-Pull | Open Drain, Push-Pull | Push-Pull, Push-Pull | Push-Pull, Push-Pull | Push-Pull, Totem Pole |
| Reset | Active Low | Active Low | Active High/Active Low | Active High/Active Low | Active High/Active Low | Active High/Active Low | Active Low |
| Reset Timeout | 35ms Minimum | 35ms Minimum | 35ms Minimum | 140ms Minimum | 35ms Minimum | 35ms Minimum | 35ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) | -55°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP | 8-CERDIP | 16-CERDIP | 16-CERDIP | 16-CERDIP | 16-CERDIP | 8-PDIP |
