Please send RFQ , we will respond immediately.

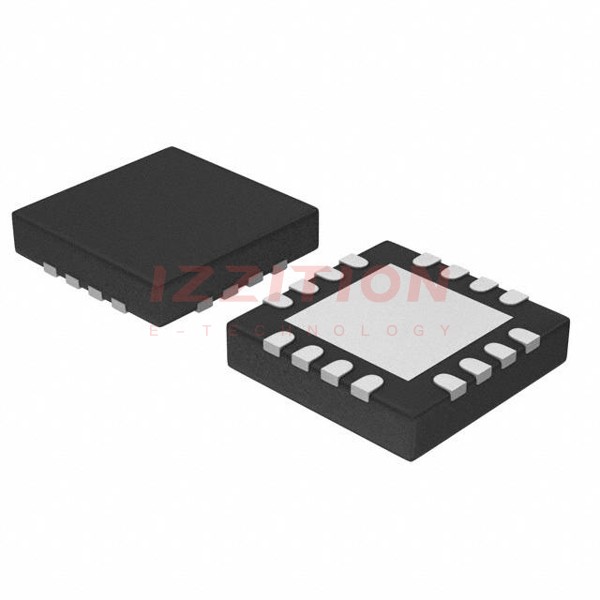

| Part Number | ADL5906ACPZN-R7 | ADL5906SCPZN-R7 | ADL5903ACPZN-R7 | ADL5904ACPZN-R7 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Frequency | 10MHz ~ 10GHz | 10MHz ~ 10GHz | 868MHz | 0Hz ~ 6GHz |
| RF Type | General Purpose | CDMA, GSM, LTE, WiMAX | - | - |
| Input Range | -65dBm ~ 8dBm | - | - | -30dBm ~ 15dBm |
| Accuracy | ±1dB | ±1dB | ±1dB | ±1dB |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 3V ~ 5V | 3.3V |
| Current - Supply | 86 mA | 86 mA | 3.6 mA | 3.5 mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 8-UFDFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (4x4) | 16-LFCSP (4x4) | 8-LFCSP-UD (2x2) | 16-LFCSP (3x3) |
