Please send RFQ , we will respond immediately.

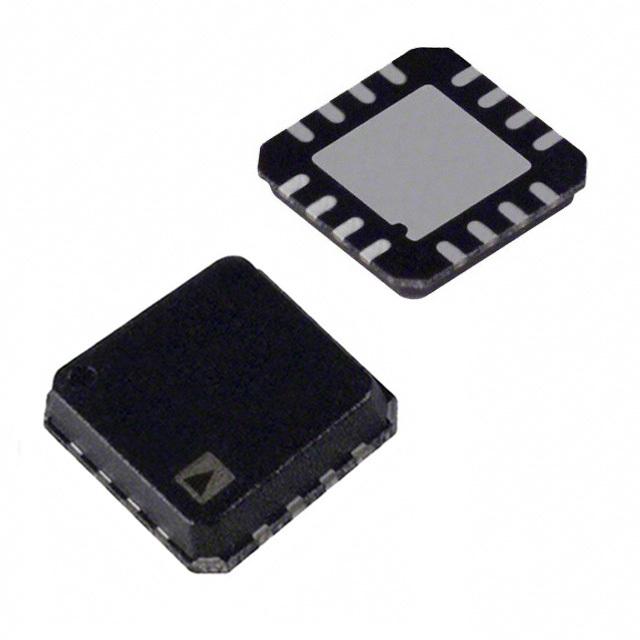

| Part Number | ADL5605ACPZ-R7 | ADL5606ACPZ-R7 | ADL5205ACPZ-R7 | ADL5604ACPZ-R7 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Frequency | 700MHz ~ 1GHz | 1.8GHz ~ 2.7GHz | 1.7GHz | 700MHz ~ 2.7GHz |
| P1dB | 30.9dB | 28.9dBm | 17.7dBm | 29.1dBm |
| Gain | 23dB | 20.6dB | 35dB | 12.2dB |
| Noise Figure | 4.8dB | 5.1dB | 8.2dB | 4.6dB |
| RF Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 3.15V ~ 5.25V | 4.75V ~ 5.25V |
| Current - Supply | 307mA | 362mA | 175mA | 318mA |
| Test Frequency | 943MHz | 2.63GHz | 500MHz | 2.63GHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad, CSP | 16-VQFN Exposed Pad, CSP | 40-WFQFN Exposed Pad, CSP | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) | 16-LFCSP-VQ (4x4) | 40-LFCSP-WQ (6x6) | 16-LFCSP-VQ (4x4) |
