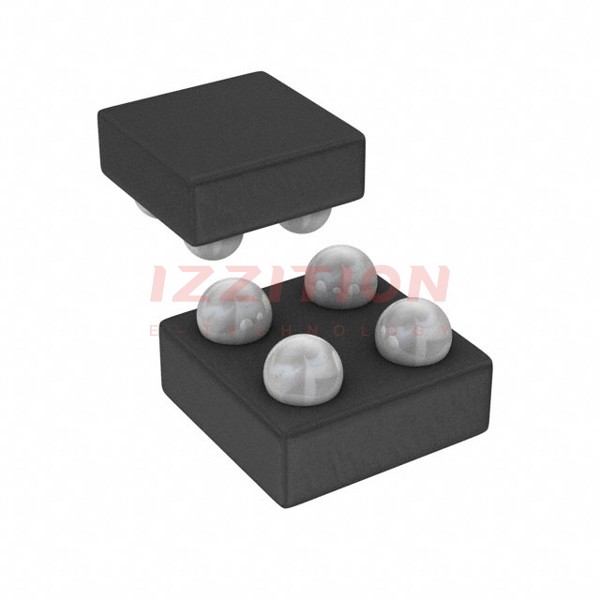

| Part Number | ADL5505ACBZ-P7 | ADL5500ACBZ-P7 | ADL5502ACBZ-P7 | ADL5504ACBZ-P7 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Frequency | 450MHz ~ 6GHz | 100MHz ~ 6GHz | 450MHz ~ 6GHz | 450MHz ~ 6GHz |
| RF Type | LTE, WiMax | Cellular, CDMA2000, W-CDMA | Cellular, CDMA2000, OFDM, W-CDMA | CDMA, QPSK, W-CDMA |
| Input Range | -22dBm ~ 15dBm | -18.5dBm ~ 6dBm | -15dBm ~ 12dBm | -25dB ~ 15dB |
| Accuracy | ±0.25dB | ±0.1dB | ±0.25dB | ±0.25dB |
| Voltage - Supply | 2.5V ~ 3.3V | 2.7V ~ 5.5V | 2.5V ~ 3.3V | 2.5V ~ 3.3V |
| Current - Supply | 1.8 mA | 1 mA | 3 mA | 1.8 mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-WFBGA, WLCSP | 4-WFBGA, WLCSP | 8-UFBGA, WLCSP | 6-UFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.79x0.79) | 4-WLCSP (0.96x0.96) | 8-WLCSP (1.46x1.46) | 6-WLCSP (0.91x1.39) |
