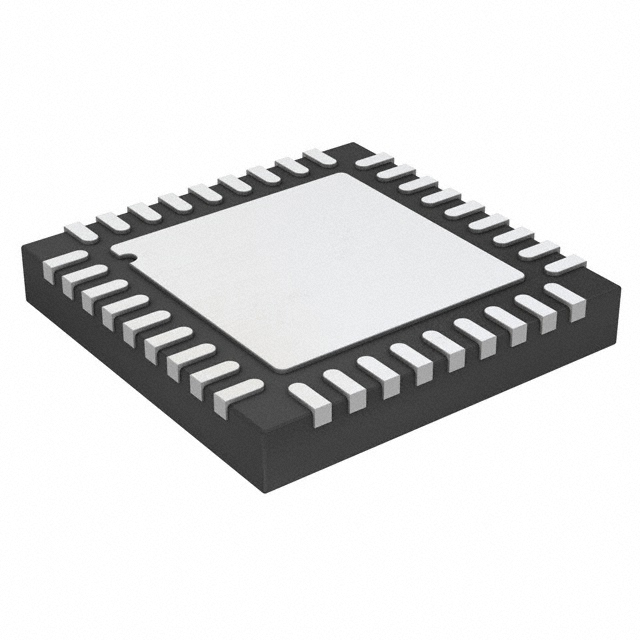

| Part Number | ADL5354ACPZ-R7 | ADL5356ACPZ-R7 | ADL5355ACPZ-R7 | ADL5357ACPZ-R7 | ADL5358ACPZ-R7 | ADL5350ACPZ-R7 | ADL5353ACPZ-R7 | ADL5354ACPZ-R2 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| RF Type | Cellular | Cellular | Cellular, ISM | Cellular, ISM | Cellular | Cellular, CDMA, GSM | Cellular | Cellular |
| Frequency | 2.2GHz ~ 2.7GHz | 1.2GHz ~ 2.5GHz | 1.2GHz ~ 2.5GHz | 500MHz ~ 1.7GHz | 500MHz ~ 1.7GHz | 750MHz ~ 4GHz | 2.2GHz ~ 2.7GHz | 2.2GHz ~ 2.7GHz |
| Number of Mixers | 2 | 2 | 1 | 1 | 2 | 1 | 1 | 2 |
| Gain | 14dB | 8.2dB | 8.4dB | 8.6dB | 8.3dB | - | 8.7dB | 14dB |
| Noise Figure | 9.9dB | 9.9dB | 9.2dB | 9.1dB | 9.9dB | 6.5dB | 9.8dB | 9.9dB |
| Secondary Attributes | - | - | - | - | - | - | - | - |
| Current - Supply | 350mA | 350mA | 100mA | 100mA | 350mA | 16.5mA | 125mA | 350mA |
| Voltage - Supply | 3.3V ~ 5V | 4.75V ~ 5.25V | 3.3V ~ 5V | 3.3V ~ 5V | 3.3V ~ 5V | 2.7V ~ 3.5V | 3.3V ~ 5V | 3.3V ~ 5V |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 36-VFQFN Exposed Pad, CSP | 36-VFQFN Exposed Pad, CSP | 20-WQFN Exposed Pad, CSP | 20-WQFN Exposed Pad, CSP | 36-VFQFN Exposed Pad, CSP | 8-VFDFN Exposed Pad, CSP | 20-WQFN Exposed Pad, CSP | 36-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 36-LFCSP-VQ (6x5.75) | 36-LFCSP-VQ (6x5.75) | 20-LFCSP-WQ (5x5) | 20-LFCSP-WQ (5x5) | 36-LFCSP-VQ (6x5.75) | 8-LFCSP-VD (3x2) | 20-LFCSP-WQ (5x5) | 36-LFCSP-WQ (6x6) |
