Please send RFQ , we will respond immediately.

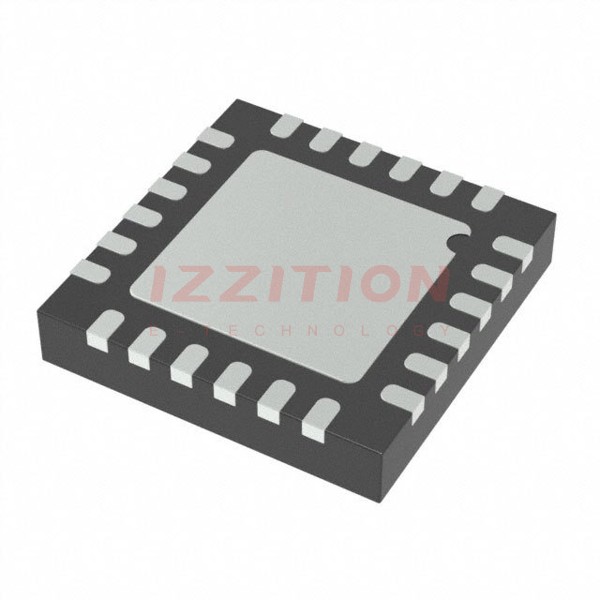

| Part Number | ADGS5414BCPZ | ADGS5412BCPZ |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active |
| Switch Circuit | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 |
| Number of Circuits | 8 | 4 |
| On-State Resistance (Max) | - | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | - | 350mOhm |
| Voltage - Supply, Single (V+) | 9V ~ 40V | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | - | 530ns, 230ns |
| -3db Bandwidth | - | 160MHz |
| Charge Injection | - | 310pC |
| Channel Capacitance (CS(off), CD(off)) | - | 17pF, 17pF |
| Current - Leakage (IS(off)) (Max) | - | 250pA |
| Crosstalk | - | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad, CSP | 24-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) | 24-LFCSP (4x4) |
