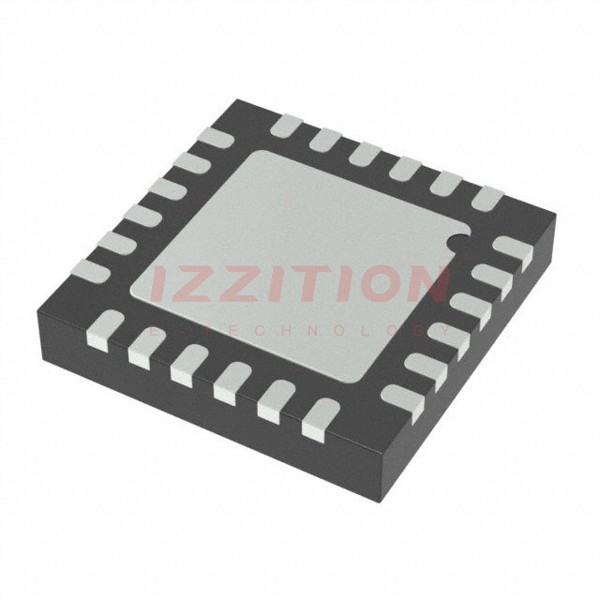

| Part Number | ADGS5412BCPZ | ADGS5414BCPZ | ADGS1412BCPZ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 4 | 8 | 4 |
| On-State Resistance (Max) | 10Ohm | - | 1.8Ohm |
| Channel-to-Channel Matching (ΔRon) | 350mOhm | - | 100mOhm |
| Voltage - Supply, Single (V+) | 9V ~ 40V | 9V ~ 40V | 5V ~ 20V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V | ±9V ~ 22V | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 530ns, 230ns | - | 135ns, 190ns |
| -3db Bandwidth | 160MHz | - | 170MHz |
| Charge Injection | 310pC | - | -20pC |
| Channel Capacitance (CS(off), CD(off)) | 17pF, 17pF | - | 22pF, 23pF |
| Current - Leakage (IS(off)) (Max) | 250pA | - | 550pA |
| Crosstalk | -70dB @ 1MHz | - | -100dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad, CSP | 24-VFQFN Exposed Pad, CSP | 24-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) | 24-LFCSP (4x4) | 24-LFCSP (4x4) |
