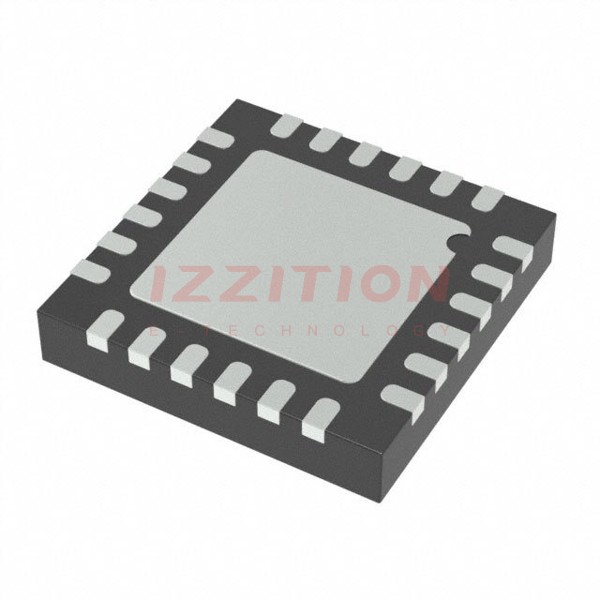

| Part Number | ADGS1612BCPZ-RL7 | ADGS1212BCPZ-RL7 | ADGS1412BCPZ-RL7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 4 | 4 | 4 |
| On-State Resistance (Max) | 1Ohm | 260Ohm, 625Ohm | 1.8Ohm |
| Channel-to-Channel Matching (ΔRon) | 40mOhm | 11Ohm, 27Ohm | 100mOhm |
| Voltage - Supply, Single (V+) | 3.3V ~ 16V | 5V ~ 16.5V | 5V ~ 20V |
| Voltage - Supply, Dual (V±) | ±3.3V ~ 8V | ±4.5V ~ 16.5V | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | - | 490ns, 225ns | 135ns, 190ns |
| -3db Bandwidth | 42MHz | 1GHz | 170MHz |
| Charge Injection | 140pC | 1pC | -20pC |
| Channel Capacitance (CS(off), CD(off)) | 63pF, 63pF | 1.4pF, 1.5pF | 22pF, 23pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 1nA | 550pA |
| Crosstalk | -110dB @ 1MHz | -110dB @ 1MHz | -100dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad, CSP | 24-WFQFN Exposed Pad, CSP | 24-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) | 24-LFCSP (4x4) | 24-LFCSP (4x4) |
