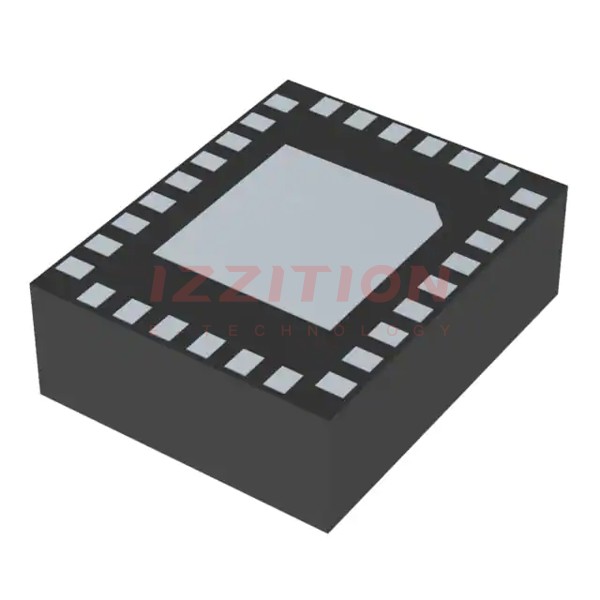

ADGS1414DBCCZ Image
×
Favorite
Compare
Add to RFQ
Share:
Analog Devices Inc. ADGS1414DBCCZ
Manufacturer No:
ADGS1414DBCCZ
Manufacturer:
Analog Devices Inc.
Package:
Tray
Datasheet:
ADGS1414DBCCZ Datasheet
ECAD Model:
-
Description:
FULLY INTEGRATED, 1.5 ? RON, 15
Delivery:
Payment:
Product Attributes
Switch Circuit:
SPST
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
8
On-State Resistance (Max):
1.8Ohm
Channel-to-Channel Matching (ΔRon):
300mOhm
Voltage - Supply, Single (V+):
5V ~ 20V, ±4.5V ~ 16.5V
Voltage - Supply, Dual (V±):
5V ~ 20V, ±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max):
475ns, 190ns
-3db Bandwidth:
170MHz
Charge Injection:
-20pC
Channel Capacitance (CS(off), CD(off)):
20pF, 21pF
Current - Leakage (IS(off)) (Max):
30pA
Crosstalk:
-75dB @ 1MHz
Operating Temperature:
-40°C ~ 125°C
Mounting Type:
Surface Mount
Package / Case:
30-FLGA Exposed Pad
Supplier Device Package:
30-LGA (4x5)
0
Remaining
View Similar
In Stock
UnitPrice:
$25.56
Quantity:
9
