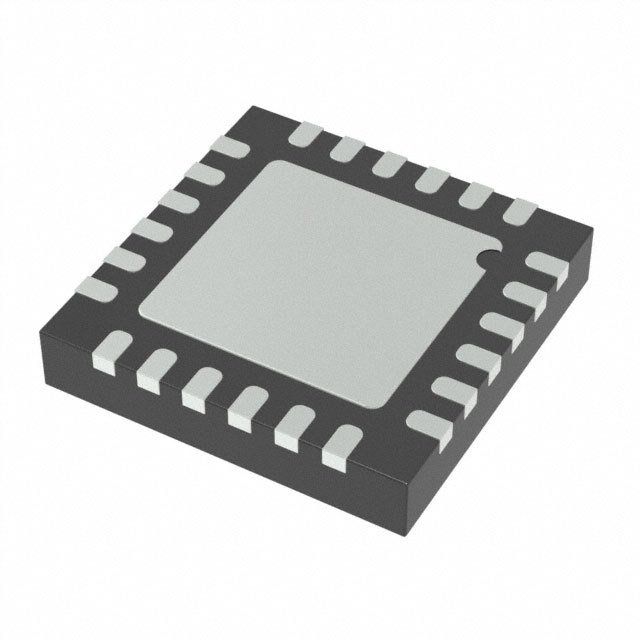

| Part Number | ADGS1208BCPZ-RL7 | ADGS1209BCPZ-RL7 | ADGS1408BCPZ-RL7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Switch Circuit | - | - | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 4:1 | 8:1 |
| Number of Circuits | 1 | 2 | 1 |
| On-State Resistance (Max) | 200Ohm | 200Ohm | 4.7Ohm |
| Channel-to-Channel Matching (ΔRon) | 3.5Ohm | 3.5Ohm | 200mOhm |
| Voltage - Supply, Single (V+) | 12V | 12V | 12V |
| Voltage - Supply, Dual (V±) | ±15V | ±15V | ±15V |
| Switch Time (Ton, Toff) (Max) | 110ns, 135ns | 110ns, 135ns | 165ns, 155ns |
| -3db Bandwidth | 550MHz | 630MHz | 60MHz |
| Charge Injection | 0.4pC | 0.4pC | 50pC |
| Channel Capacitance (CS(off), CD(off)) | 1pF, 5pF | 1pF, 2pF | 14pF, 80pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 100pA | 200pA |
| Crosstalk | -85dB @ 1MHz | -85dB @ 1MHz | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad, CSP | 24-WFQFN Exposed Pad, CSP | 24-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) | 24-LFCSP (4x4) | 24-LFCSP (4x4) |
